Dowell Impresora 3d Large Format Pellet 3d Printer With Auto Level Function
  • Dowell 3d
  • China
  • 10-16 days
  • 1000set/m

The DP-A Pellet 3D printer features a high-precision sensor-based auto-leveling system, coupled with 64-Point matrix detection, ensures more accurate results.
High temperature nozzle up to 420°C, with a larger heating area, can melt particles quickly.

https://youtu.be/5K_Dv_h43Sg?si=_CUFr7UAB4Y6bVx0

The Dowell DP-A Fused granulate fabrication (FGF) pellet 3D printer is a large-format, high-speed thermoplastic

extrusion printer designed for large-scale additive manufacturing.

Industrial Plastic Pellet 3d Printer

Model
FGF Pettle 3d printer
Nozzle diameter1.0/2.0/3.0 mm
Extruder3 Stage Screw extrusion
Max extrusion flow rate4000-5000g/hour

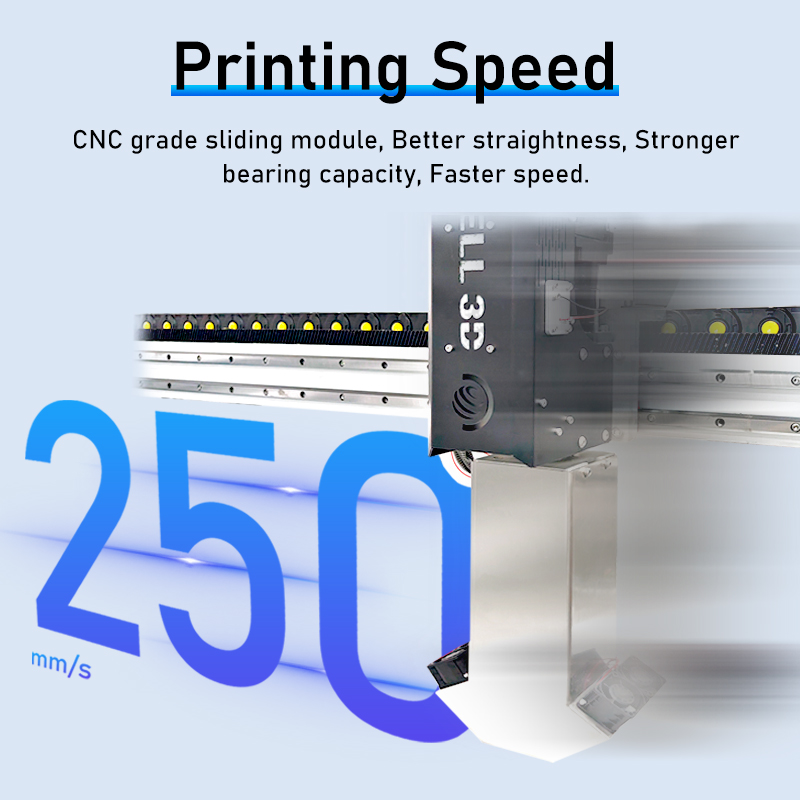

Printing speed0-300mm/s
Extruder cooling systemWater cooling
Materialpellet<Φ4mm recommended
Nozzle temperature0-420℃
Bed temperature6mm tempered glass 0-100
Operation interface10''full color touch screen
File formatSTL/OBJ/GCODE/JPG
ConnectionSD Card / U Disk / WiFi
Operation firmwareIndependent research and development
TransmissionScrew drive & Servo Motor
Input power110/220V
Basic functionsAuto leveling, Automatic feeding, Automatic temperature control, Water cooling system, Visible Printing status,Wifi Connection,Z-offset adjustment,Speed & extrusion & cooling adjustment,etc...


Advantages of Industrial Dowell 3D Pellet Printer


  • Faster Extrusion Speeds, max 5000g/h.

  • Automatic feeding, We have sensitive optical sensors to control the automatic feeding of remote particles.

  • Water Cooling: Independently developed, independent water cooling system for rapid heat dissipation

  • Larger Print Sizes: the maximum print size is 1600 x 2400 x 1600 mm, and custom options are available.

  • Stable printing, Z offset adjustment, automatic leveling + auxiliary leveling.

  • Water cooling system, Great cooling effect to ensure nice and accurate printing quality.

  • The remote control module supports remote monitoring of printing progress and parameter adjustment via WiFi or the cloud, making it more intelligent and efficient.

  • Control interface: 10"full color touch screen, available in 15 languages.

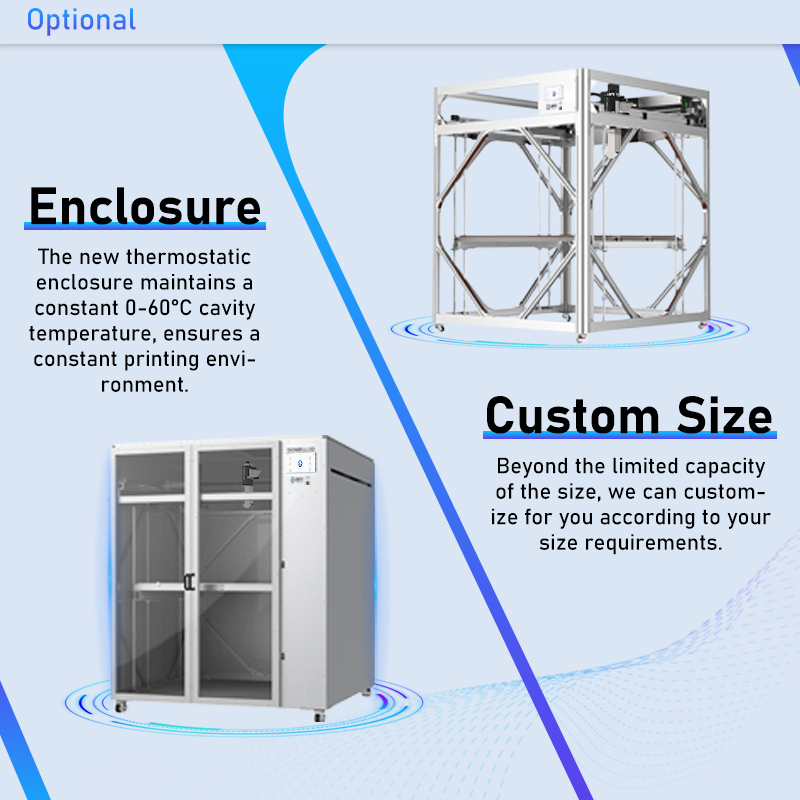

  • Optional 60℃ constant temperature shell.

Large Scale 3d Printers for Pellets

Auto Leveling FGF 3d Printer

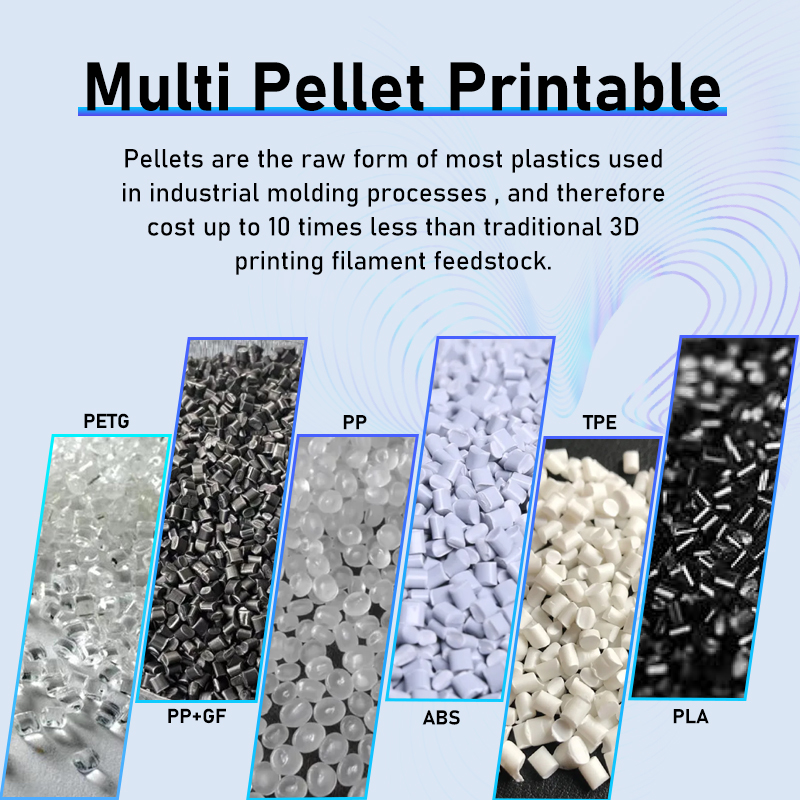

Multi Pellet Printable

Pellets are the raw form of most plastics used in industrial molding processes,

and therefore cost up to 10 times less than traditional 3D printing filament feedstock.

Supported pellets: PLA/ABS/PETG/TPE/PP Glass Fiber/etc.

Granular material diameter: pellet<Φ4mm recommended

Industrial Plastic Pellet 3d Printer

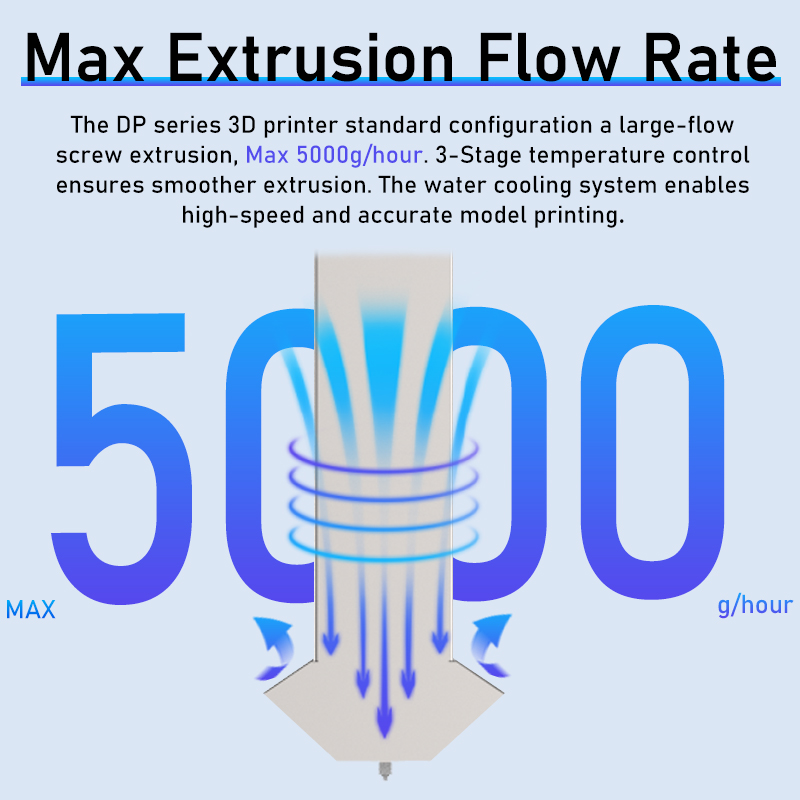

Max Extrusion Flow Rate

The Dowell DP-A 3d Printer uses an advanced screw extrusion system, with a max of 5000g/hour.

3-Stage temperature control ensures smoother extrusion.

The water cooling system enables high-speed and accurate model printing.

Large Scale 3d Printers for Pellets

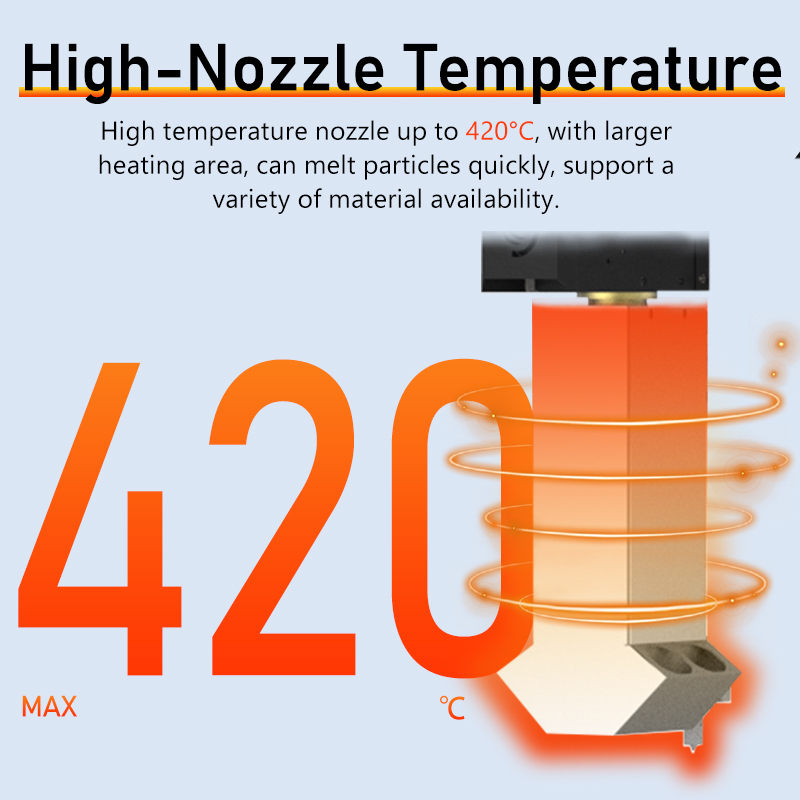

 420℃ High Temp Nozzle

High temperature nozzle up to 420°C, with a larger heating area, can melt particles quickly,

supporting a variety of material availability.

Auto Leveling FGF 3d Printer

 100℃ High Temp Hot Bed

Platform composition: Silicone heating plate + 6mm tempered glass. High-power heated bed,

uniform heating up to 100°C. The thickened tempered glass resists deformation, maintains excellent flatness,

and offers strong load-bearing capacity, making model disassembly easy.

Industrial Plastic Pellet 3d Printer

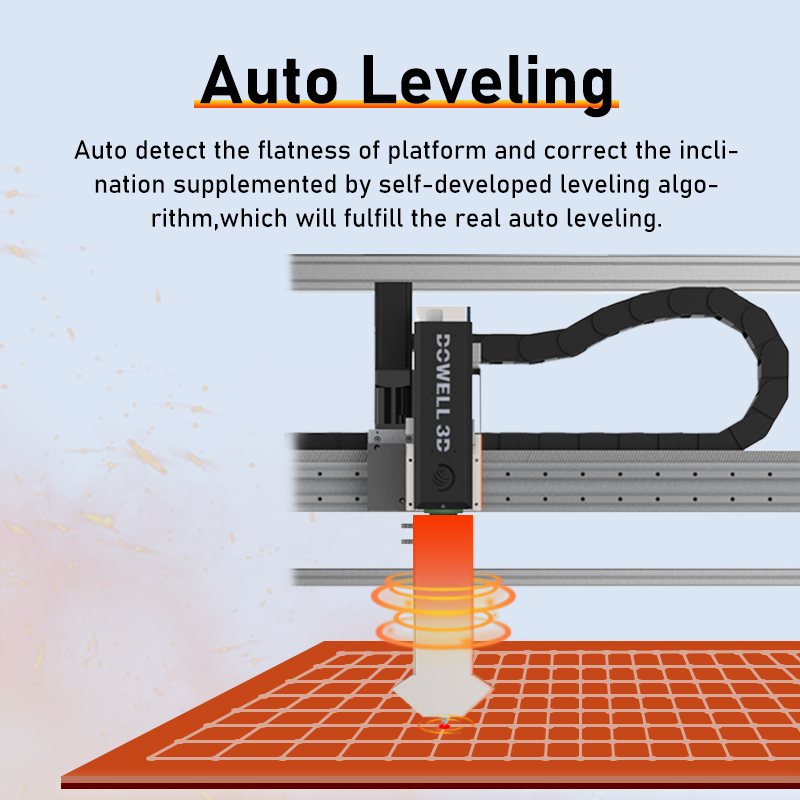

 Real Auto Leveling

Intelligent, all-round detection of the distance between the nozzle and the platform improves the printing success rate.

During the printing process, the Z axis can also be controlled to compensate for the distance to ensure that the printing platform and nozzle remain level.

Large Scale 3d Printers for Pellets

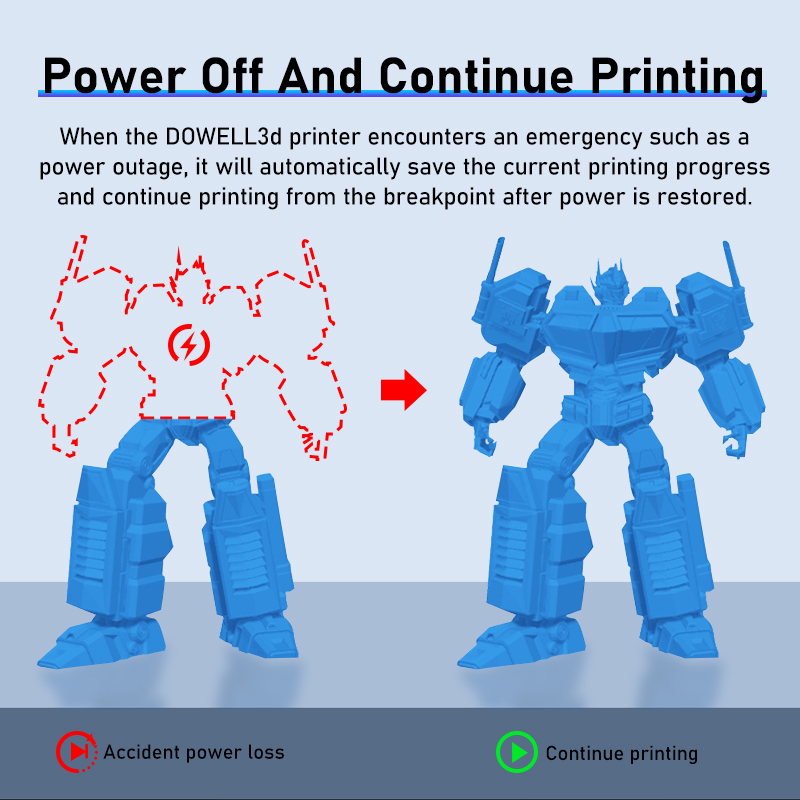

Power Off And Continue Printing

When the DOWELL large-format pellet 3d printer encounters an emergency, such as a power outage,

it will automatically save the current printing progress and continue printing from the breakpoint after power is restored.

So no worry about the power being off.

Auto Leveling FGF 3d Printer


Industrial Plastic Pellet 3d Printer

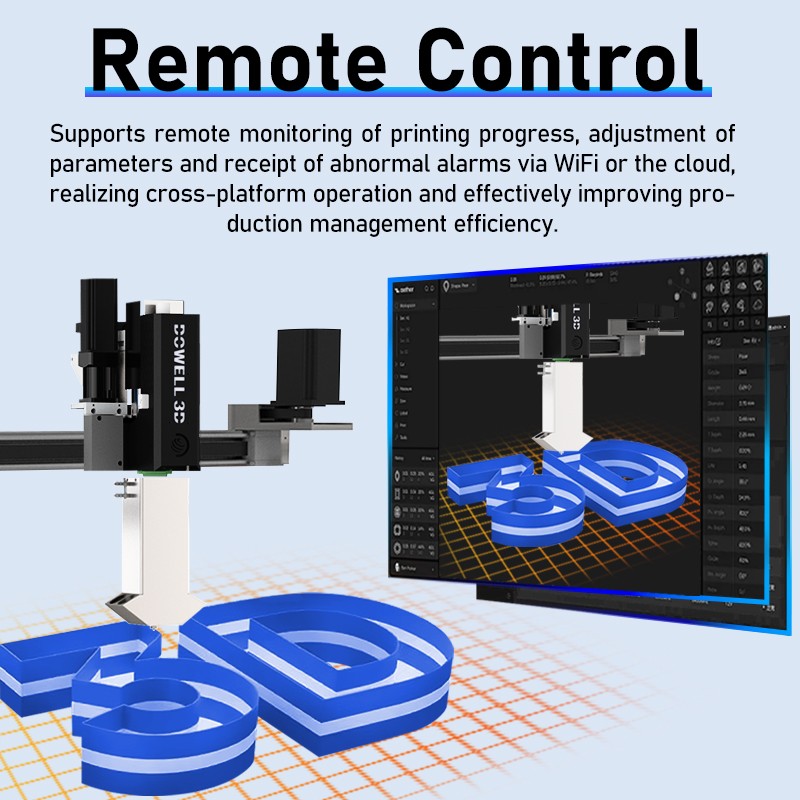

Dowell FGF 3D printers are equipped with a remote maintenance module that analyzes potential anomalies

and provides access to parameters and intelligent information.

Remotely monitor the printing process in real time and capture time-lapse images, allowing you to closely observe

and record actual conditions, providing a convenient and in-depth perspective on the printing experience.

Large Scale 3d Printers for Pellets


Auto Leveling FGF 3d Printer

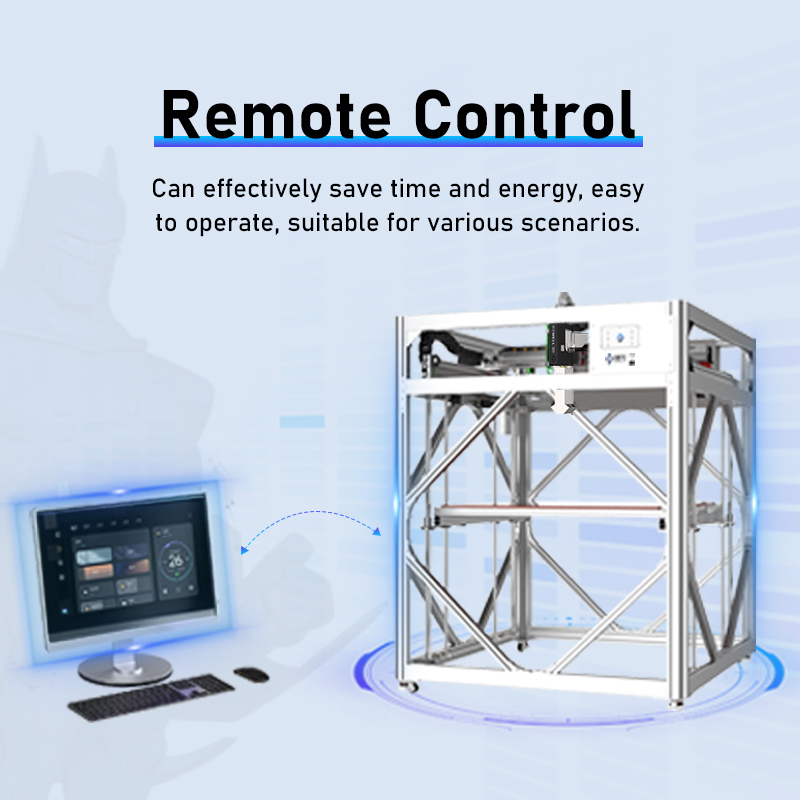

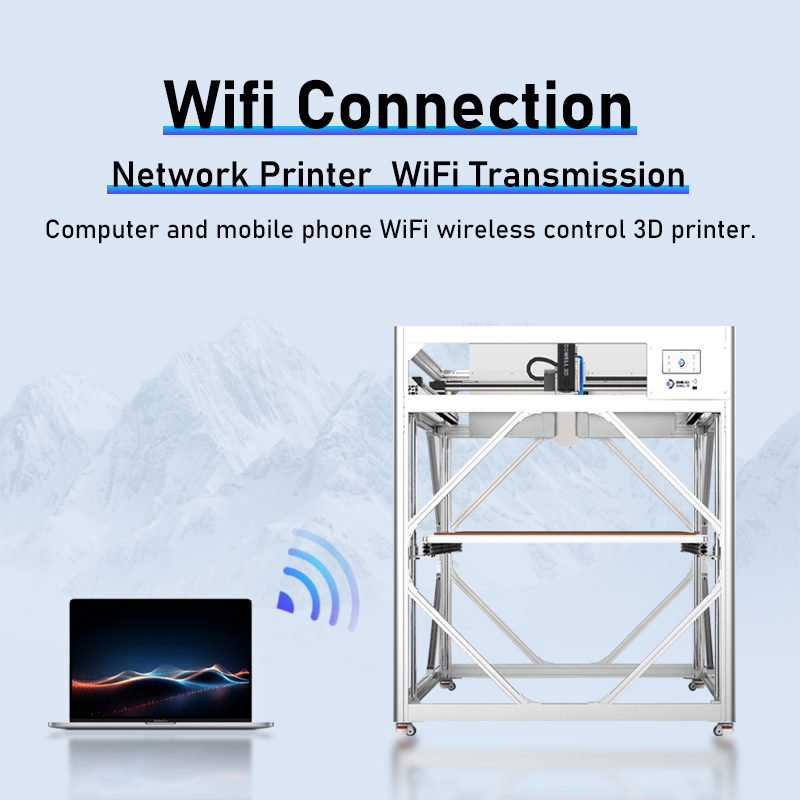

The DP-A Series is a Wi-Fi-enabled network printer offering remote control. Designed for easy maintenance,

reducing downtime and operational costs.

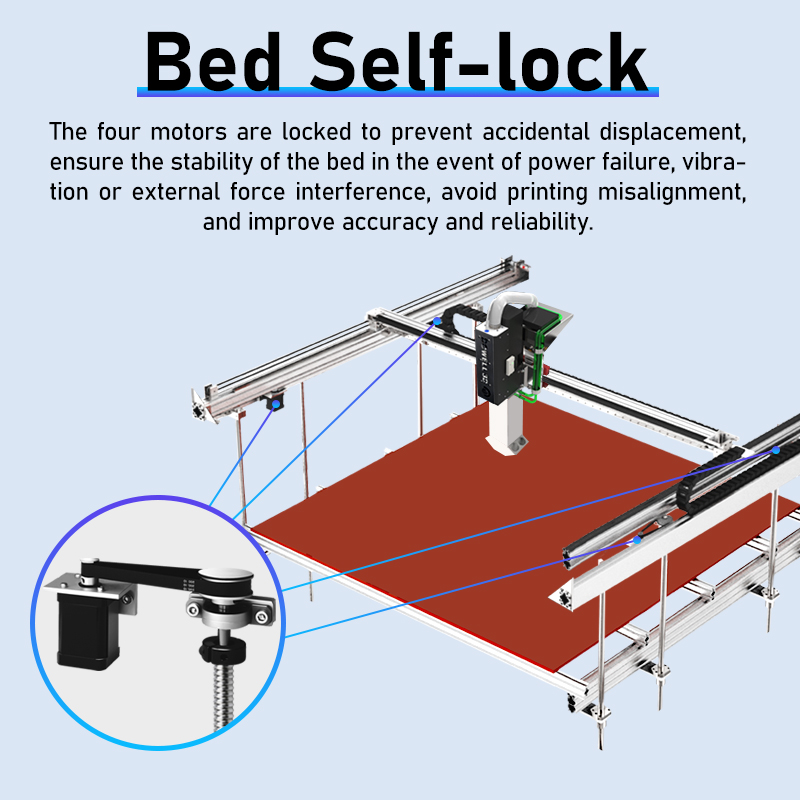

Four self-locking motors prevent accidental movement, ensuring bed stability in the event of power outages, vibration,

or external interference, preventing misalignment and improving accuracy and reliability.

Industrial Plastic Pellet 3d Printer

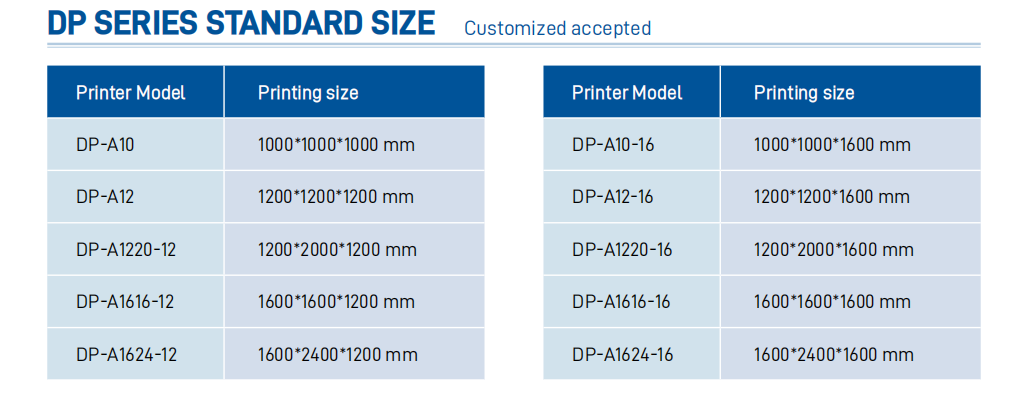

 If you need other sizes, please contact us for customization.

Customer feedback on industrial pellet 3D printers

Large Scale 3d Printers for Pellets

Auto Leveling FGF 3d Printer

 Industrial Plastic Pellet 3d Printer

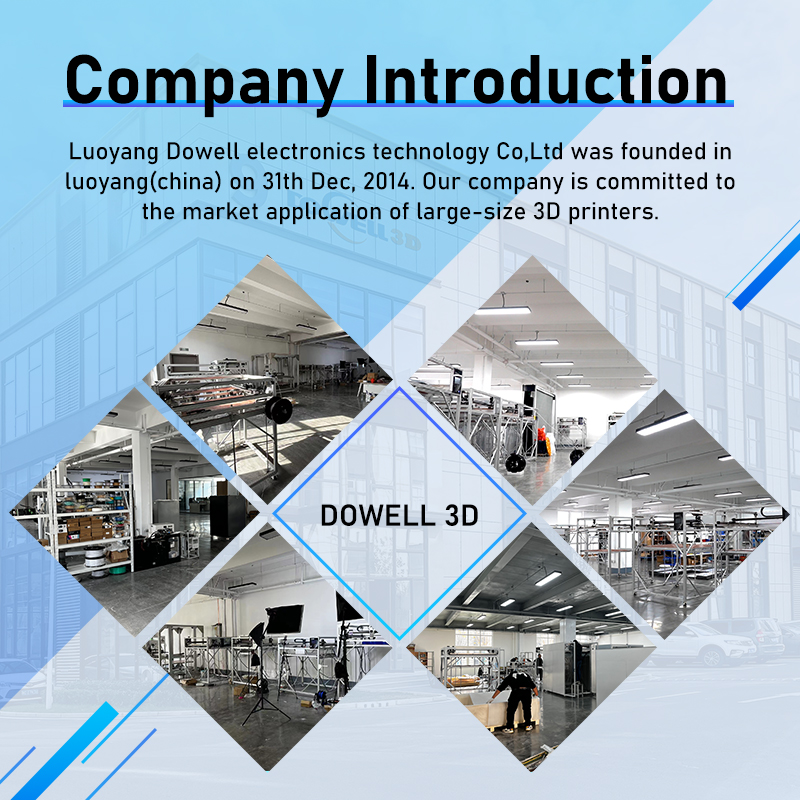

About company

Large Scale 3d Printers for Pellets

Auto Leveling FGF 3d Printer

Luoyang Dowell Electronics Technology Co., Ltd was founded in Luoyang (China) in 2014.

Our company is committed to the market application of large-sized 3D printers,

which will provide efficient and affordable 3D printers for personnel, family, school, and enterprises.

We have fast 3D printer, high flow 3D printer, pellet 3D printer, metal enclosed 3D printer,

and other printers with multiple specifications and models to meet your different printing needs.

FAQ:

1.Are you a factory?

Yes, we are a directly manufacturer focus on developing and produce large industrial 3d printers.

2.Payment method

T/T (Bank transfer), Paypal, West union, Credit card, Wechat pay, Ali Pay, T/T

3.What services can we provide?

Accepted Delivery Terms: EXW, FOB, CFR, CIF, DDP, DDU

Accepted Shipping Methods: Ocean Freight, Air Freight, DHL, FedEx, UPS

Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY

4.What's your lead time?

If the product you order is our standard model, lead time is around 20 days; or else lead time is negotiable.

5.How do you guarantee the quality of the printer?

We have 100% tests before shipment. We will supply photos and video of tests before shipment.

6: Any warranty for overseas clients?

Yes,1 year warranty.
