Noiseless Large Build Size FDM 3d Printer for industrial use
- Dowell
- China, Luoyang
- 10-16 days
- 1000 set/month
If you are tired of outsourcing or inefficient production, then our easy-to-use Dowell 3D printers can save you time and money.
Discover the Dowell 3D printers that will streamline your workflow and deliver the quality results you need.
Packed with our latest technology, it is as easy to use as it is powerful, offering the most cost-effective way for disruptive businesses to adopt 3D printing.
Dowell 3D Large FDM Industrial 3d printer machine DM Series fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
Start printing in various engineering materials (PA, PA-CF, PC, ABS, PETG, ASA, PP, PMMA ) with a large build
volume 3d printer.
Your industrial applications deserve unmatched accuracy, high-quality industrial-grade parts, and the possibility
to iterate faster.
With a simple setup and intuitive operation, the Dowell 3d printer is a great solution. Intelligent features like
filament jam & absence warning, and power failure recovery will make your printing experience smoother
and more pleasant.
Whether you are working in aerospace, automotive, power & energy, or any other industry requiring high-
performance parts, this printer unlocks infinite possibilities that extend well beyond prototyping.
| Product Description | |
| Model | DM1016-16 Plus Fast 3D printer |
| Printing size | 1000*1600*1600mm |
| Printing speed | 150-500mm/s |
| Frame | 60mm aluminum section |

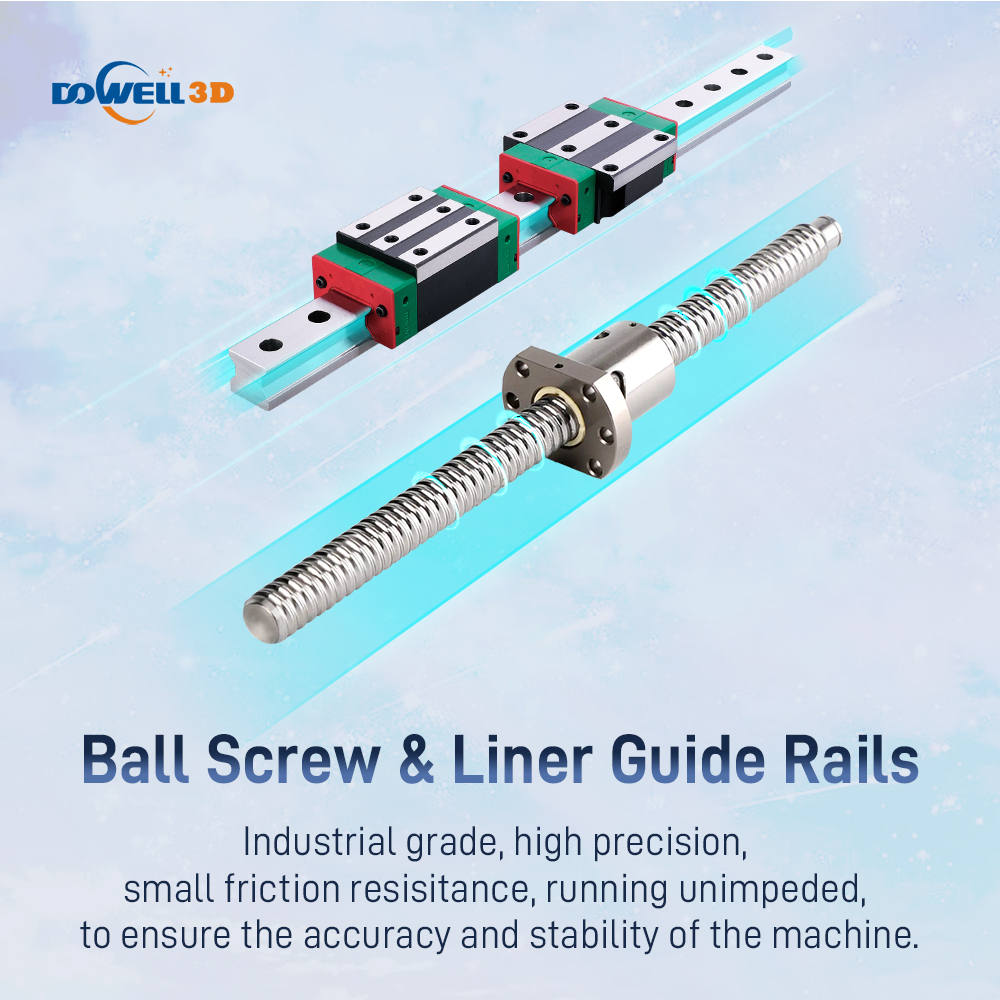

| Movement of XY axis | High precision linear rail |
| Movement of bed | 4 X screw rods & 4 X roller rods |
| Printing bed | 6mm tempered glass |
| Bed temperature | 0-100℃ (optional 150℃ ) |
| Nozzle size | 0.4/0.6/0.8mm |
| Nozzle temperature | 0-380℃ |
| Positional accuracy | 0.02mm |
| Layer accuracy | 0.04-0.6mm |
| Slicing software | Dowell3d / Cura / or other similar software |
| Input format | STL/OBJ/Gcode/JPG |
| Filament diameter | 1.75mm PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, etc |
| Connection | U disk/SD Card |
| Standard functions | *Auto leveling *Filament sensor *Auto power off *Remote control *Wi-fi connection *Visible printing status *Visible temperature graph *Installable external camera *Configuration editable *Z-offset adjustment *Speed&extrusion&cooling adjustment *Gcode viewer *History record *Emergency stop button |
| Customization Options | 1. 60℃ Enclosure 2. Printing size |

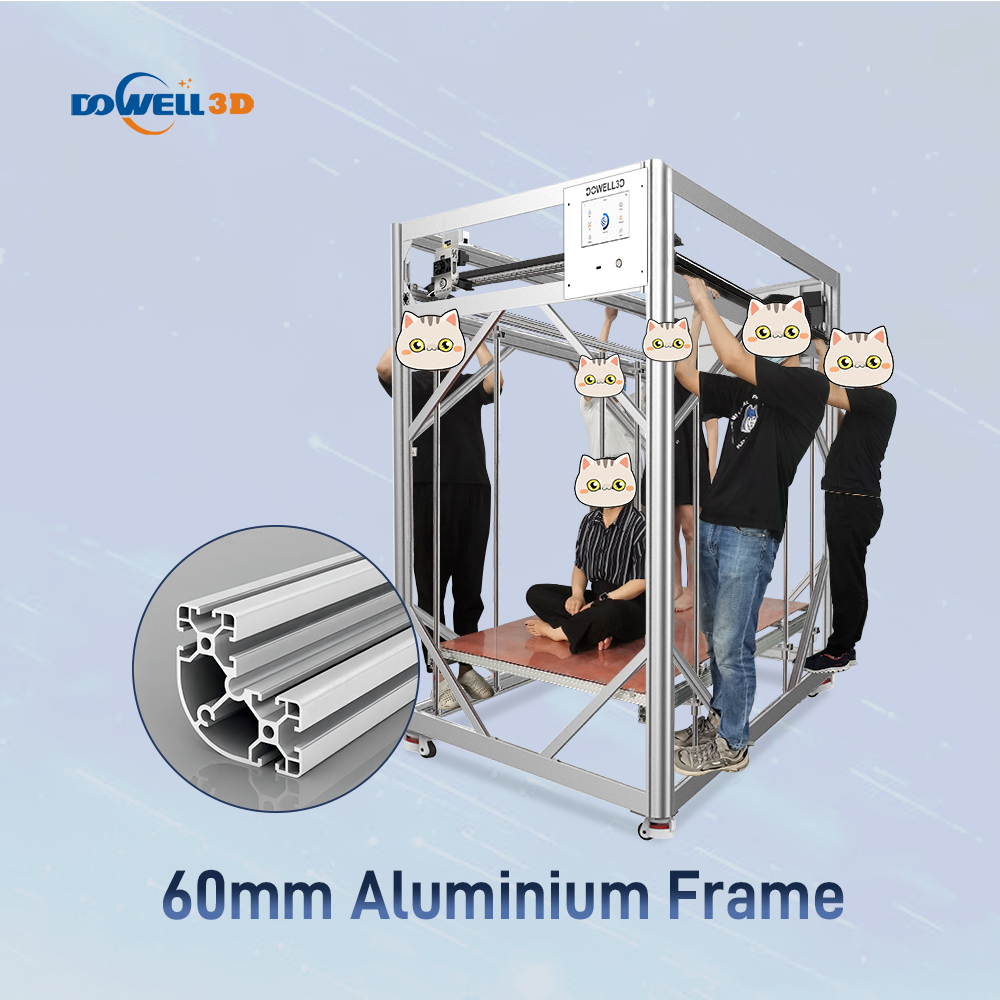

Strong aluminium profile structure, printing is more stable.
The machine's body is constructed with a sturdy 60mm aluminum alloy frame, forming the machine's rigid backbone.
This design ensures extremely low vibration and jitter, even at high printing speeds of 500mm/s. This provides
the critical stability necessary for the continuous production of large, high-precision parts.

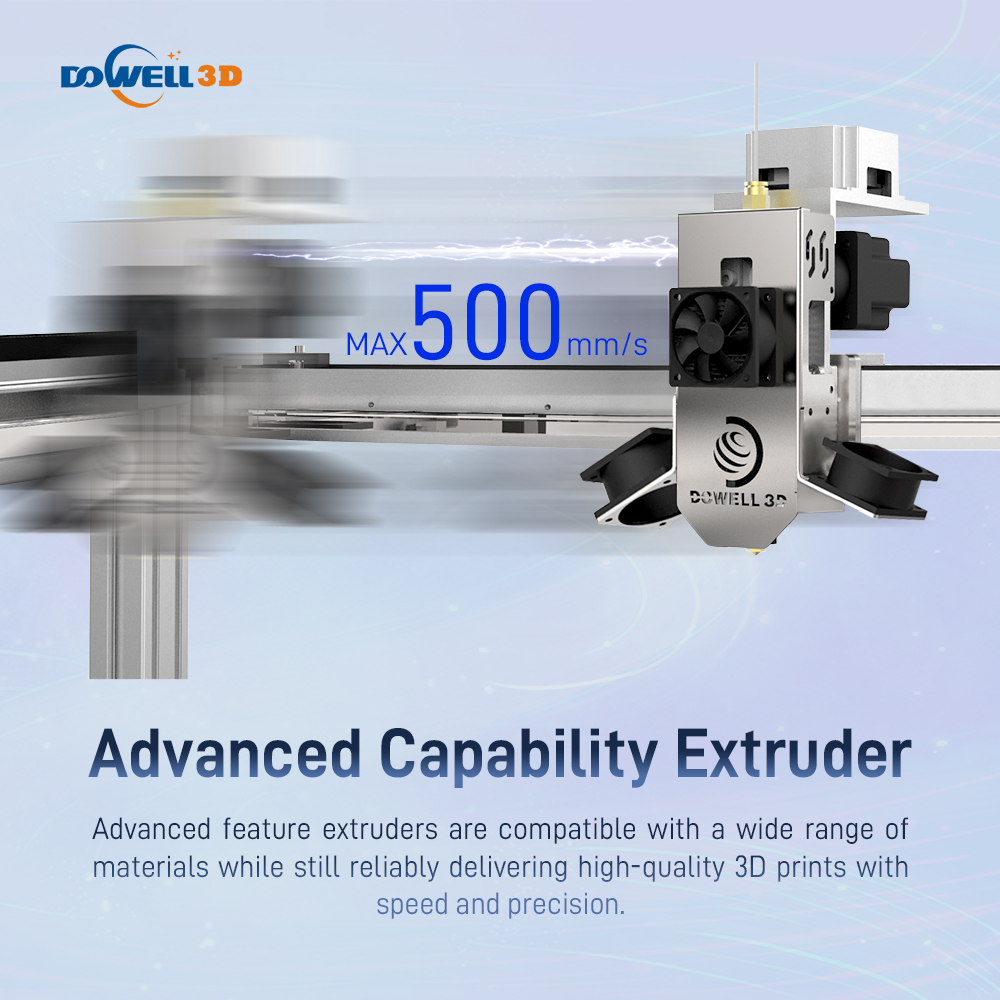

500MM/S Fast Printing
The DM Plus 3D printer boasts unmatched print speeds of up to 500 mm/s. Whether you're prototyping or
producing a final product, this printer delivers fast results without compromising precision, making it ideal
for both hobbyists and professionals.

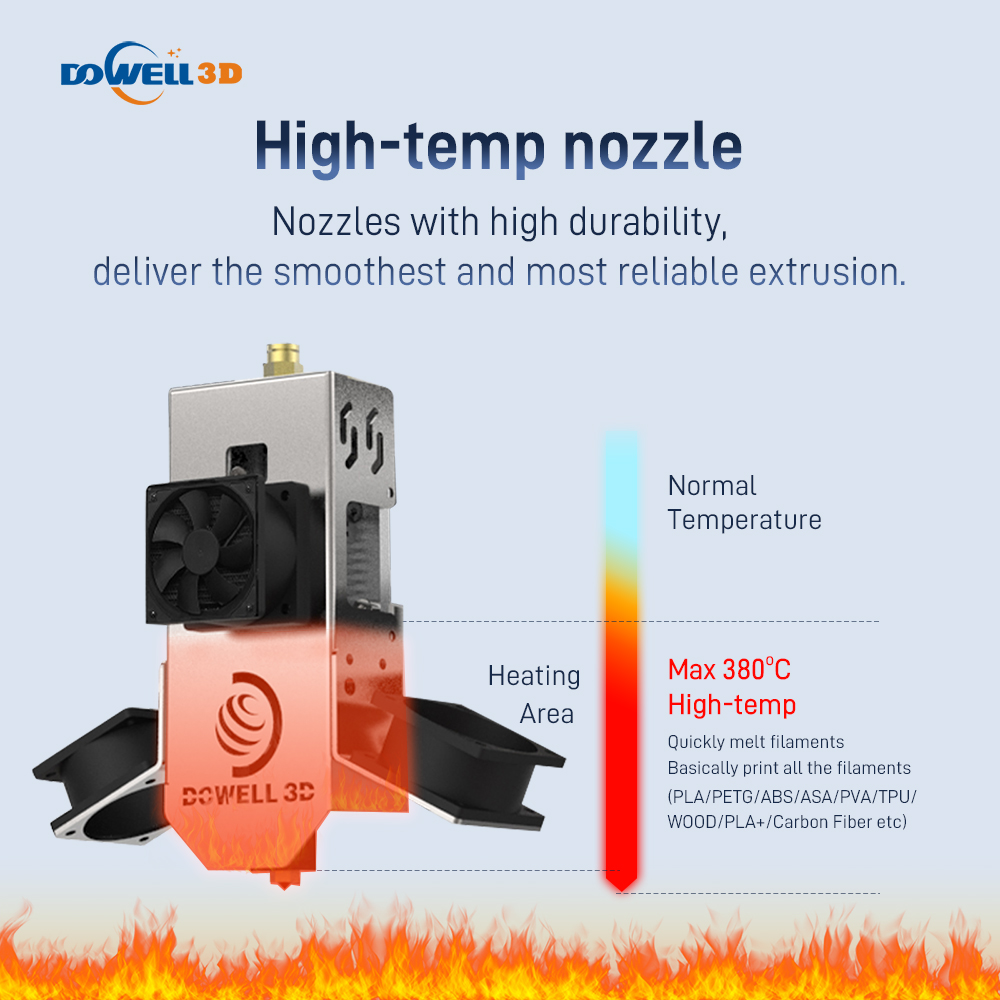

380°c High temperature nozzle, more filament printable.
The DM Plus utilizes a dual-gear drive system and a metal heating block, reaching temperatures up to 380°C.
It easily melts a wide range of 1.75mm filaments—from standard PLA to tough ABS, ASA, PETG, TPU, PVA,
wood, and carbon fiber.
This offers unparalleled material flexibility, allowing you to choose the perfect filament for both conceptual
prototypes and functional end-use parts.

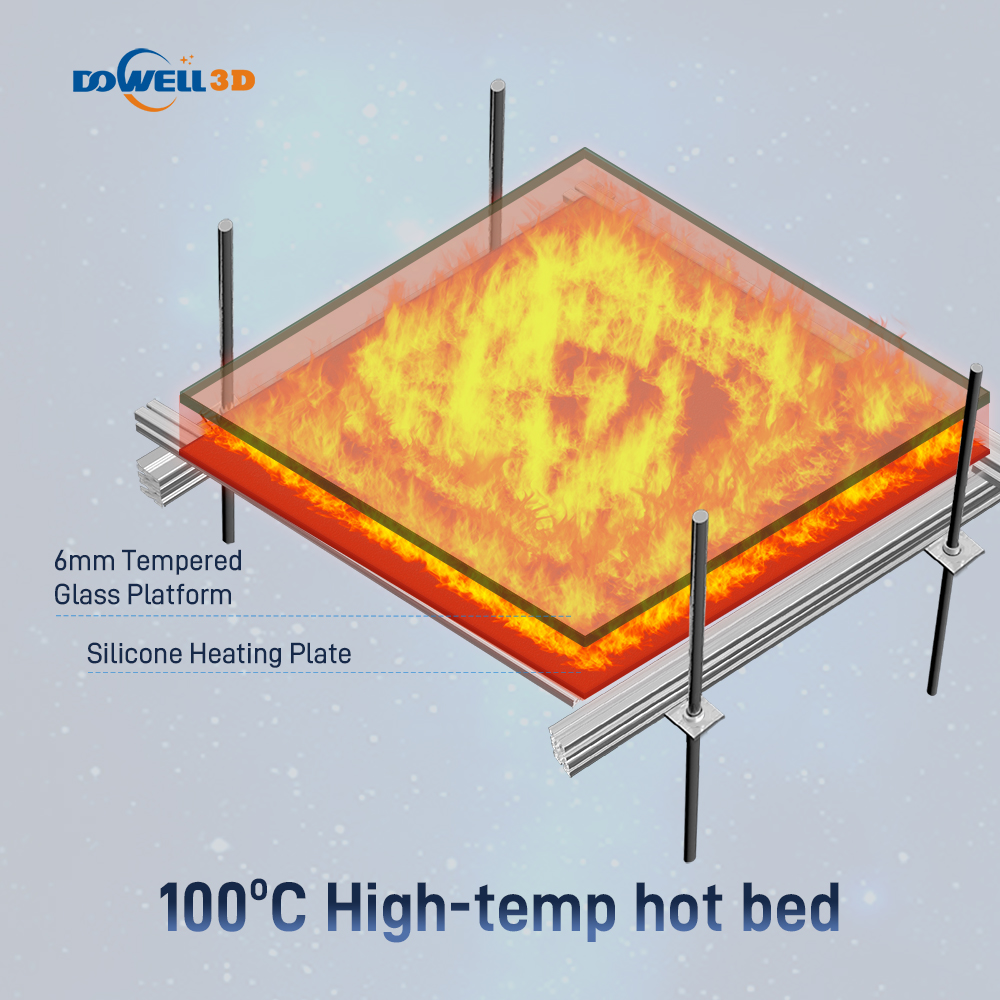

6mm tempered glass platform
The whole bed is heated evenly by a silicon rubber heater, with precise temperature control from 0-100 degrees.
Super load capacity of more than hundreds of kilograms
100℃ High Temperature Platform
Dowell 3D printer is equipped with a silicone heating plate + 6mm high-temperature resistant glass heating bed,
with a maximum temperature of up to 100°C, providing continuous and uniform heat to the bottom of the mold,
effectively enhancing adhesion and ensuring that large or complex models are firmly attached to the platform
throughout the printing process to avoid warping.
The highest temperature can be up to 100℃(optional 150℃).
One key auto-leveling helps you operate easily
2. Then 100 points on the whole bed automatic detection platform flatness. Through the independent 4-screw
automatic adjustment, to achieve true automatic leveling.
7-inch touch screen, which is convenient to operate
The DM Plus high-precision industrial 3D printer features an intuitive 7-inch full-color touchscreen with a
user-friendly interface and clear icons. Support for multiple languages, including Simplified Chinese, Traditional
Chinese, English, German, French, and Italian ensure seamless operation and device setup for users worldwide.
FDM 3D PRINTER LARGE SIZE 3D PRINTING MACHINE INDUSTRIAL 1000MM 3D PRINTER
Industrial heavy-duty PUMA wheel, Easy move.
Using a tank chain with special super flexible wire, the wires can withstand ten million times of bending.
The wires are neat and beautiful, stable and durable!
Smart Filament sensor auto-warnings if filament runs out or breaks.
When the filament runs out or breaks, it will provide an intelligent pause warning to improve the printing
success rate and save time.
We also provide customization options
A: 60℃ Enclosure
B: Printing size
A variety of printing sizes are available; we also provide customization options.
Contact us to create your own 3d printer.
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
Customer cases printed by the Dowell 3d printer
Some feedback from customers
WHY YOU CAN TRUST DOWELL 3D
CE & FCC CERTIFICATE
11 YEARS RICH EXPERIENCE ON 3D PRINTING
PROFESSIONAL R&D TEAM
DIRECTLY FACTORY ( COST SAVING)
10-16 DAYS FAST DELIVERY
LIFE-LONG TIME AFTER SALE SERVICE
Print with Ease, Innovate Infinitely!
DOWELL3D, a manufacturer with a decade of expertise in R&D, production, and global export of large-scale
industrial 3D printers proudly offer a diverse range of user-friendly, large-format 3D printers tailored for
industrial applications. Our extensive lineup features space-efficient designs and intelligent operating systems,
ensuring versatility for producing top-notch parts in any environment.
Whether you're crafting factory tools, prototypes, or end-use components, the DOWELL3D printer stands out
as a robust, cost-effective solution for manufacturing large-scale, high-quality parts.
FAQ
1-Are you a factory?
Yes, we are a direct manufacturer focused on developing and producing large industrial 3d printers.
2-Payment method
T/T (Bank transfer), PayPal, Western Union, Credit card, WeChat Pay, Ali Pay, T/T
3-Shipping method
DHL, UPS, FedEx, TNT, sea shipping, air freight, and by train.
4-What's your lead time?
If the product you order is our standard model, lead time is around 14 days; otherwise, lead time is negotiable.
5-How do you guarantee the quality of the printer?
We have 100% tests before shipment. We will supply photos and videos of tests before shipment.
We can guarantee that our 3D printer will have absolutely no quality problems before shipment.
Then we will arrange the shipping under the confirming.
