Industrial Grade 3d Printer 1000*1000*1600mm Large Size High Precision 3d Printing Machine For Car Bumper
  • DOWELL3D
  • China
  • 10-16 days
  • 1000 sets/month

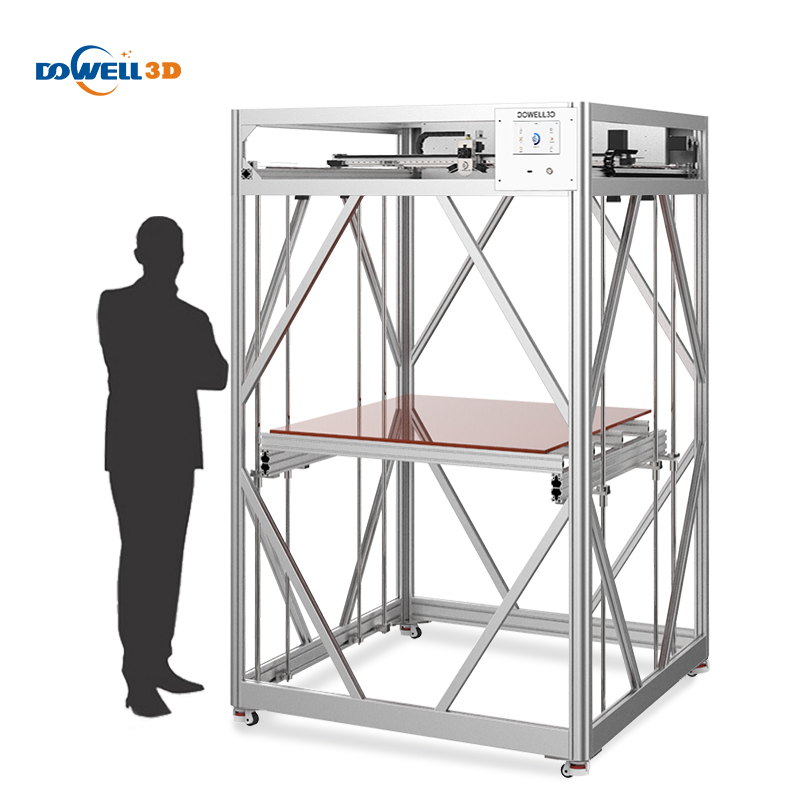

The Dowell 3D DM10-16Plus printer offers fast, professional-grade 3D printing with build sizes up to 1000 x 1000 x 1600 mm and features a 380°C high-temperature nozzle. This FDM printer series features a 64-point mesh bed auto-leveling system, industrial-grade ball screws, and linear guides to ensure printing accuracy. It also utilizes an upgraded version of DOWELL's proprietary system for easy operation.

DM Plus Series 3D Printer

The Dowell3D DM Plus series 3d printer offers a large-scale printing volume of up to 1200x2000x2000mm, supporting

multi-color and various materials like PLA, ABS, ASA, PETG, TPU, WOOD, and carbon fiber. It features a 7-inch touchscreen, auto-leveling,

a high-temp nozzle (up to 380°C), and a 100°C heated bed for superior adhesion. Equipped with industrial-grade ball screws

and linear guides for precision, it ensures fast prototyping with speeds up to 500mm/s.

The DM Plus 3D printer is ideal for businesses, professional studios, and educational institutions seeking to improve prototyping and production efficiency.

Large Build Volume 3d Printer

Product name

Dowell DM Plus series 3d printer

Print Technology

FDM (Fused Deposition) Impresora 3D

Frame60mm aluminum section

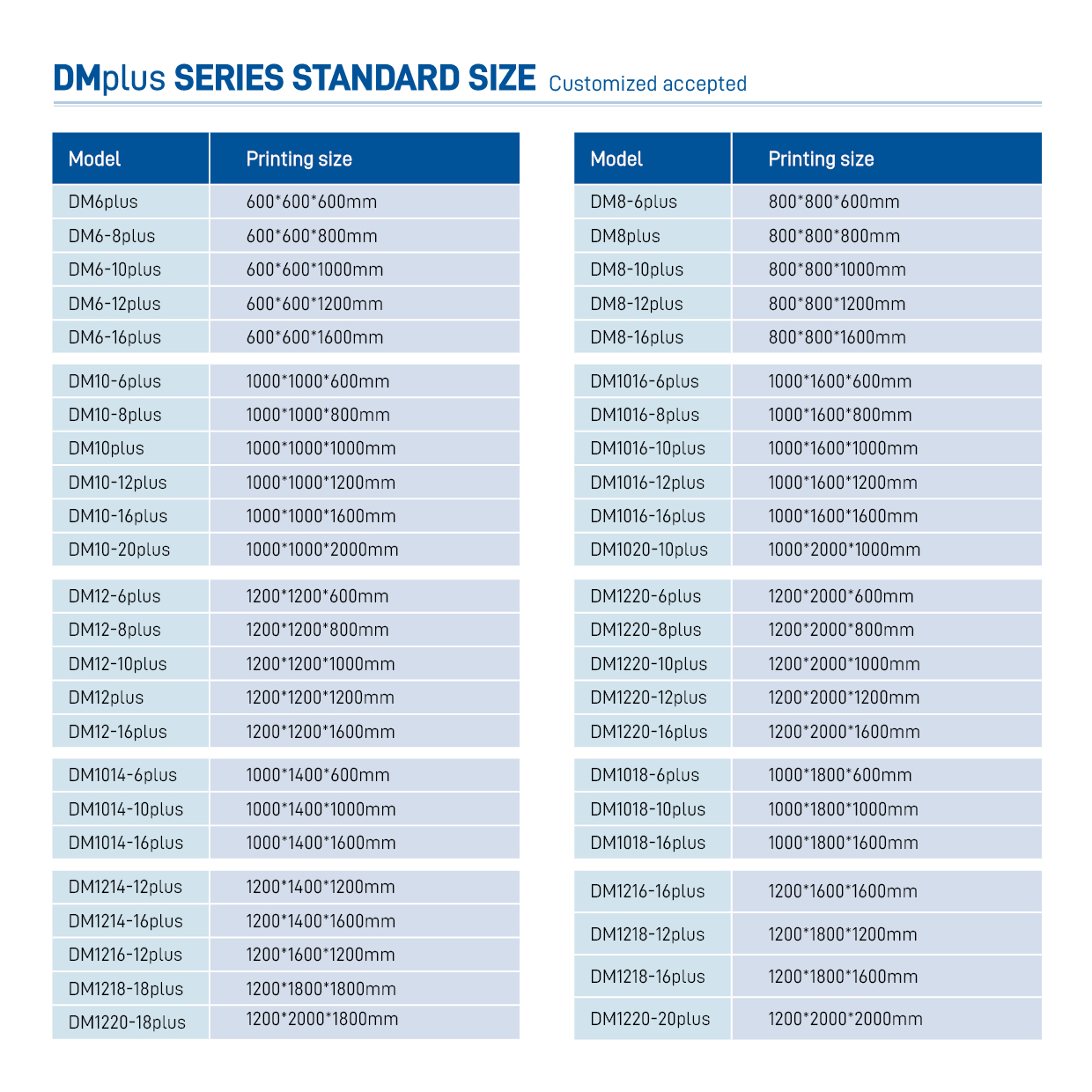

Printing sizeFrom 600*600*600mm to 1200*2000*2000mm
Nozzle diameter0.4/0.6/0.8mm
Nozzle temperature0-380℃
Bed temperature0-100℃
Location accuracy0.02mm
Layer height accuracy0.04-0.6mm
Extrusion flow rate
Max400g/hour
Printing speed
150- 500mm/s
Operation firmware
Independent research and development
Operation interface
7''full color touch screen
File format
STL/OBJ/GCOD
Filament available
1.75mm PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, etc
Connectio
SD Card / U Disk / WiFi
Basic functions

*Auto leveling                  *Visible Printing status

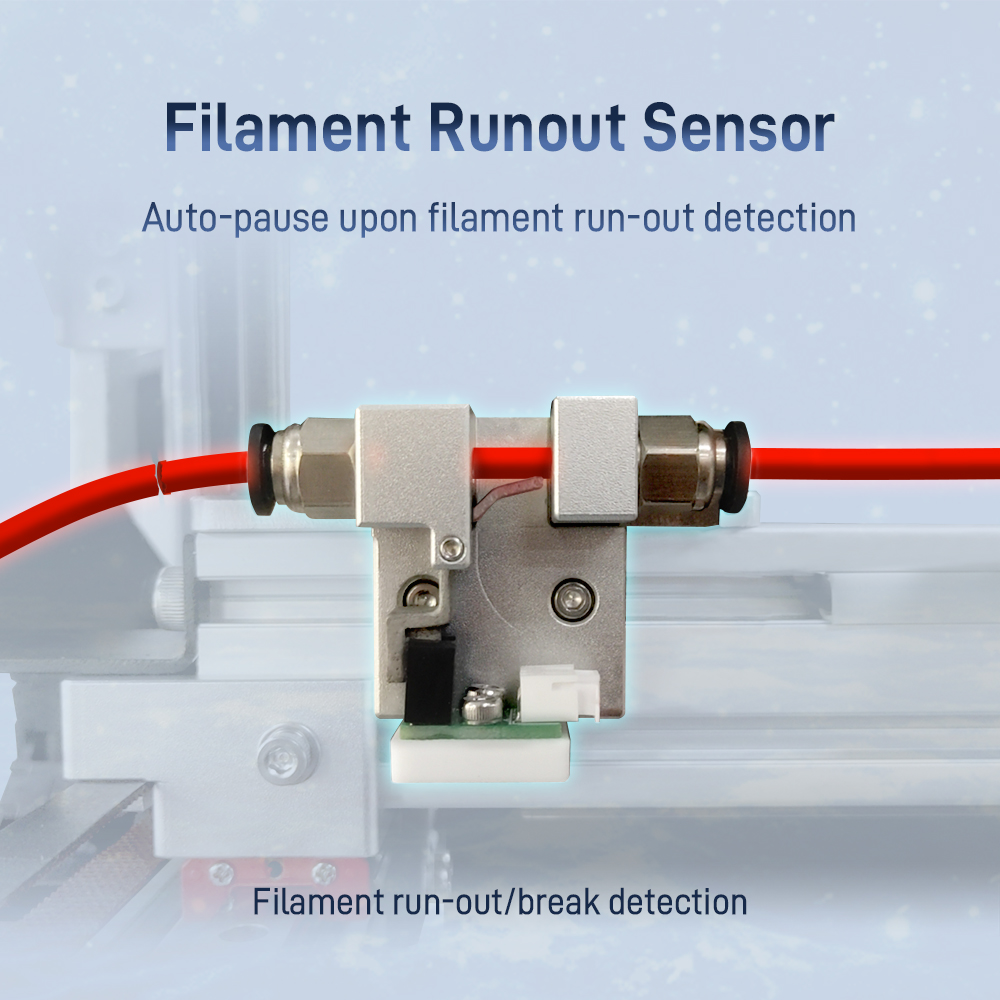

*Filament sensor            *Visible temperature graph

*Wifi Connection            *Installable external camera

*Gcode viewer                  *Configuration editable

*Z-offset adjustment     *Emergency stop button

*History Record               *Speed & extrusion & cooling adjustment

Optional*60°c Enclosure              *Customize printing size

FDM 3D Printer Detailed Description

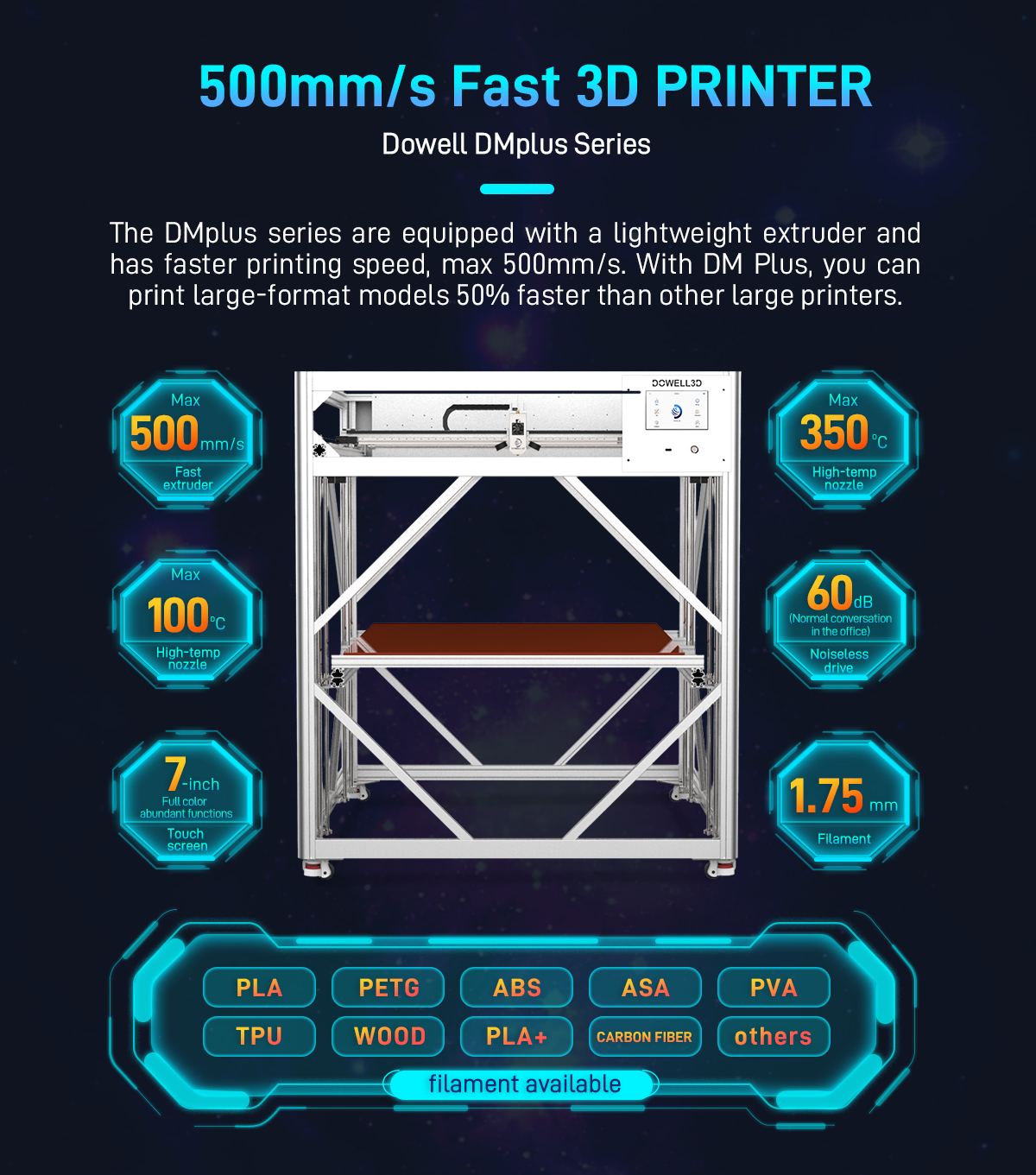

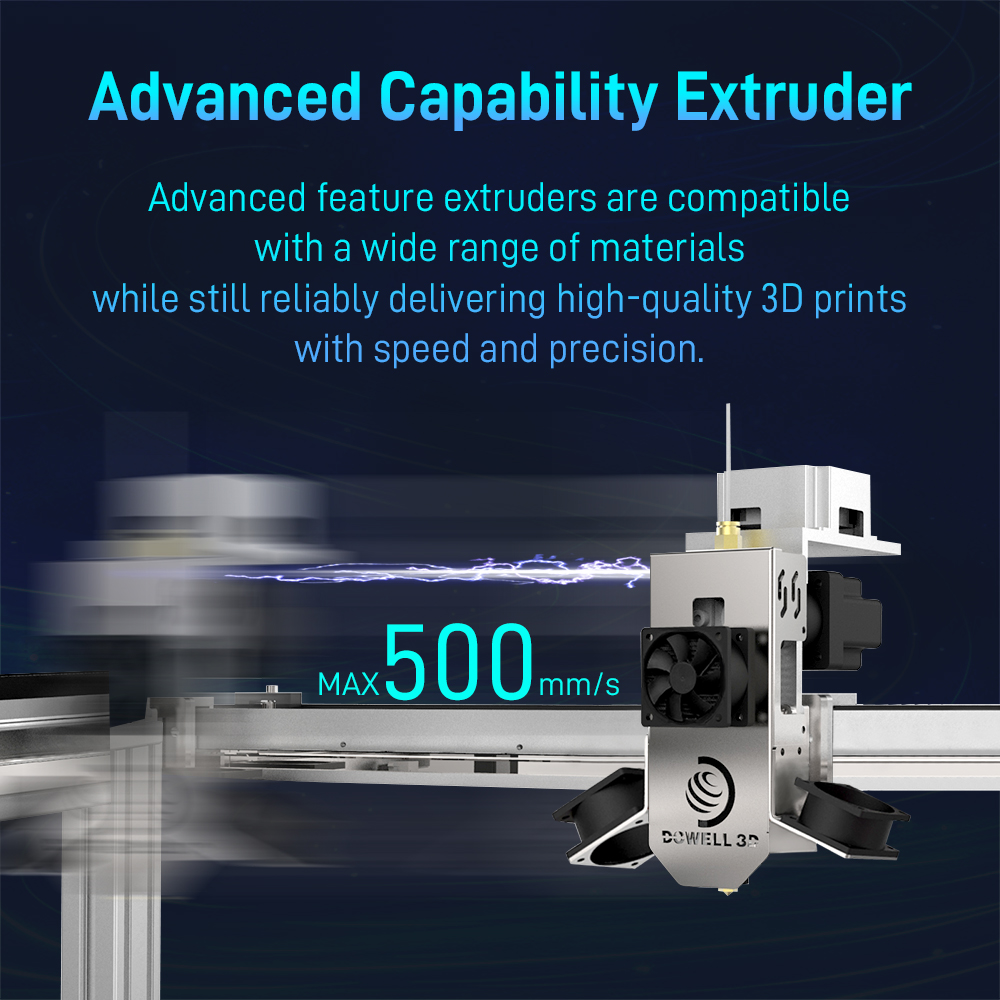

150-500 mm/s Fast Printing, Significantly Improving Efficiency

The DM Plus 3D printer offers a rapid print speed of up to 500mm/s and an extrusion rate of 400g/h. Combined with

Dowell's independently developed high-performance firmware significantly shortens the time from design to production.

Whether you're rapidly iterating prototypes or producing small batches, it helps you stay one step ahead and seize market opportunities.

Rapid Prototype 3d Printer High Accuracy Machine

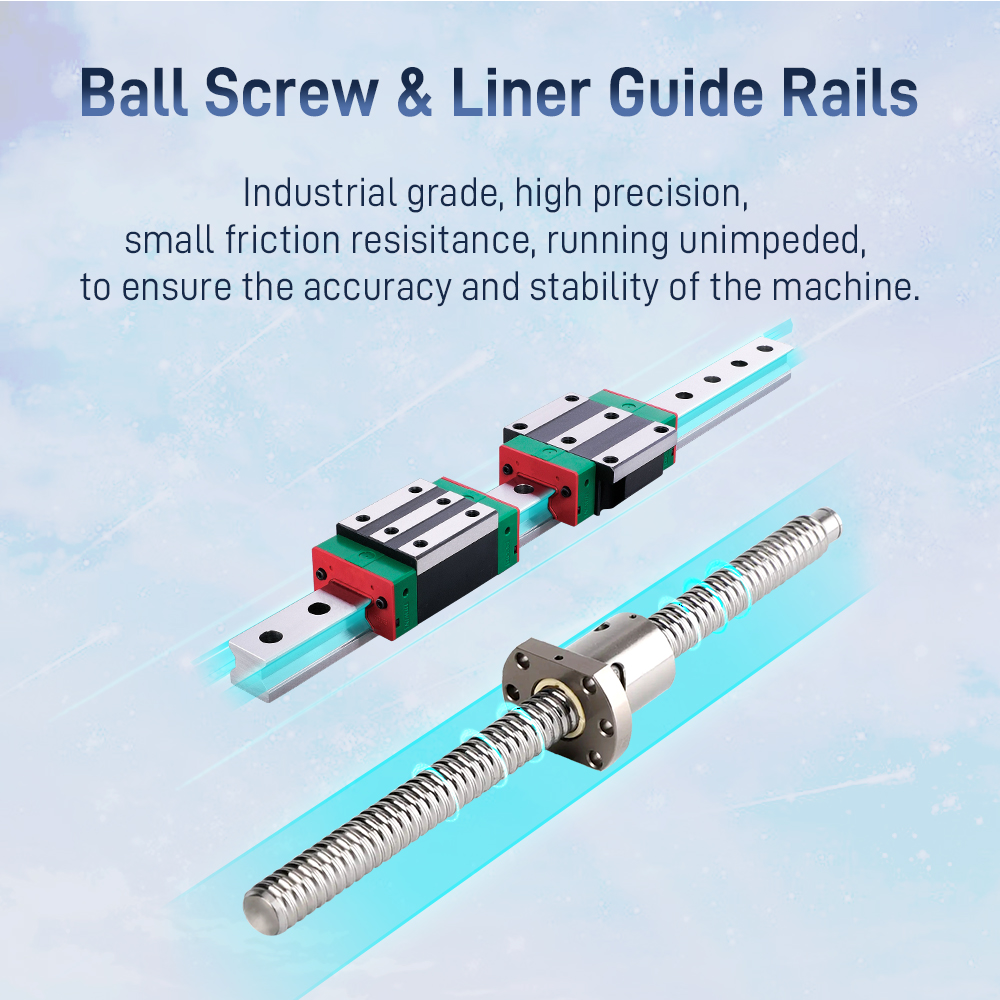

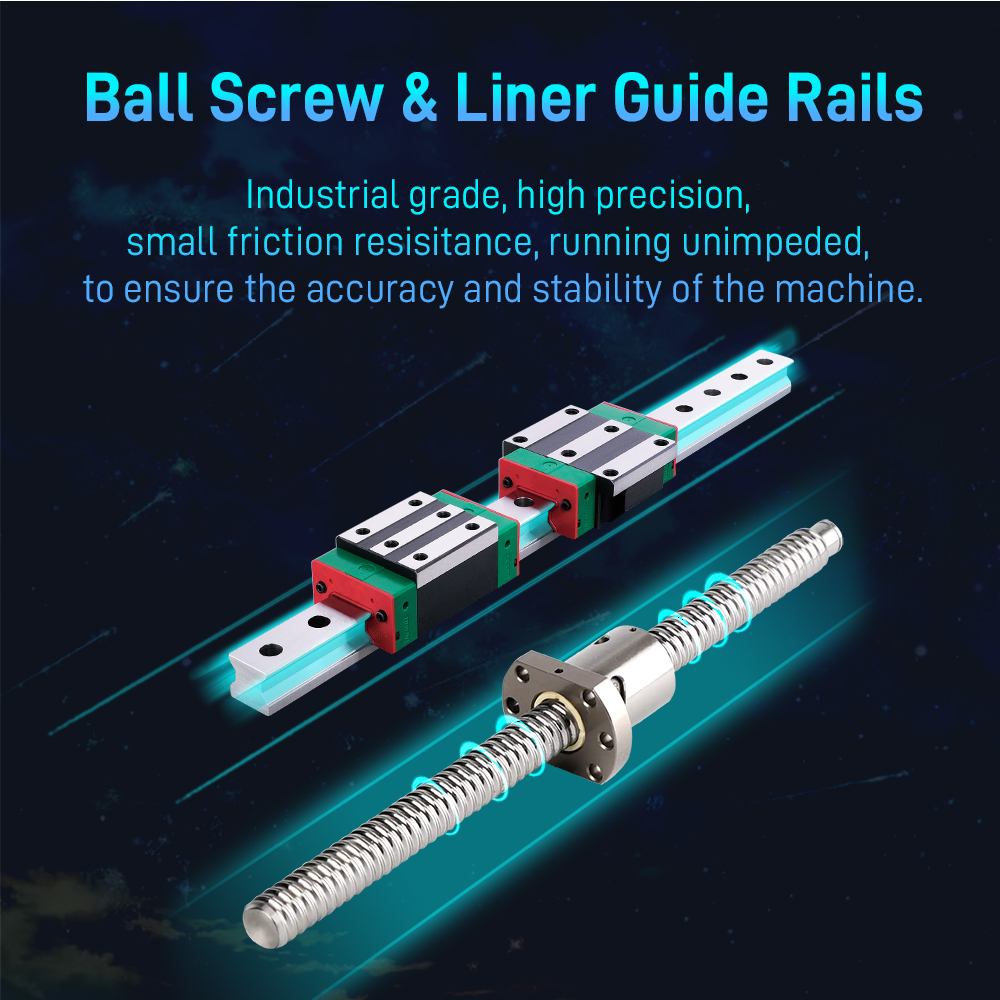

Industrial Ball Screw and Linear Guides for Precision Positioning

The Z-axis utilizes an industrial-grade ball screw, while the X and Y axes employ precision linear guides, forming a high-accuracy,

high-rigidity motion system. This combination eliminates backlash, ensuring consistent layer height and precise printhead

positioning, achieving a repeatability positioning accuracy of up to 0.02mm for impeccable model details.

High Quality 3d Printer Automotive Parts 3d Printing

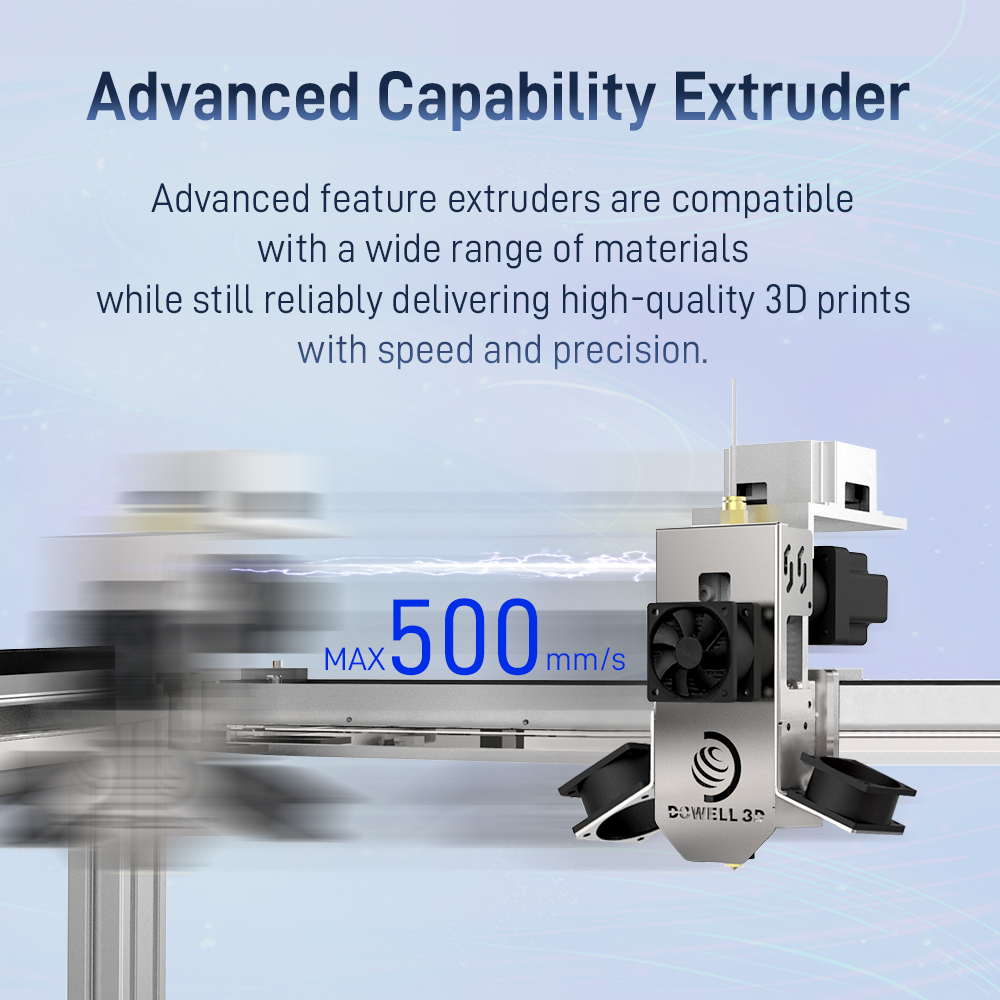

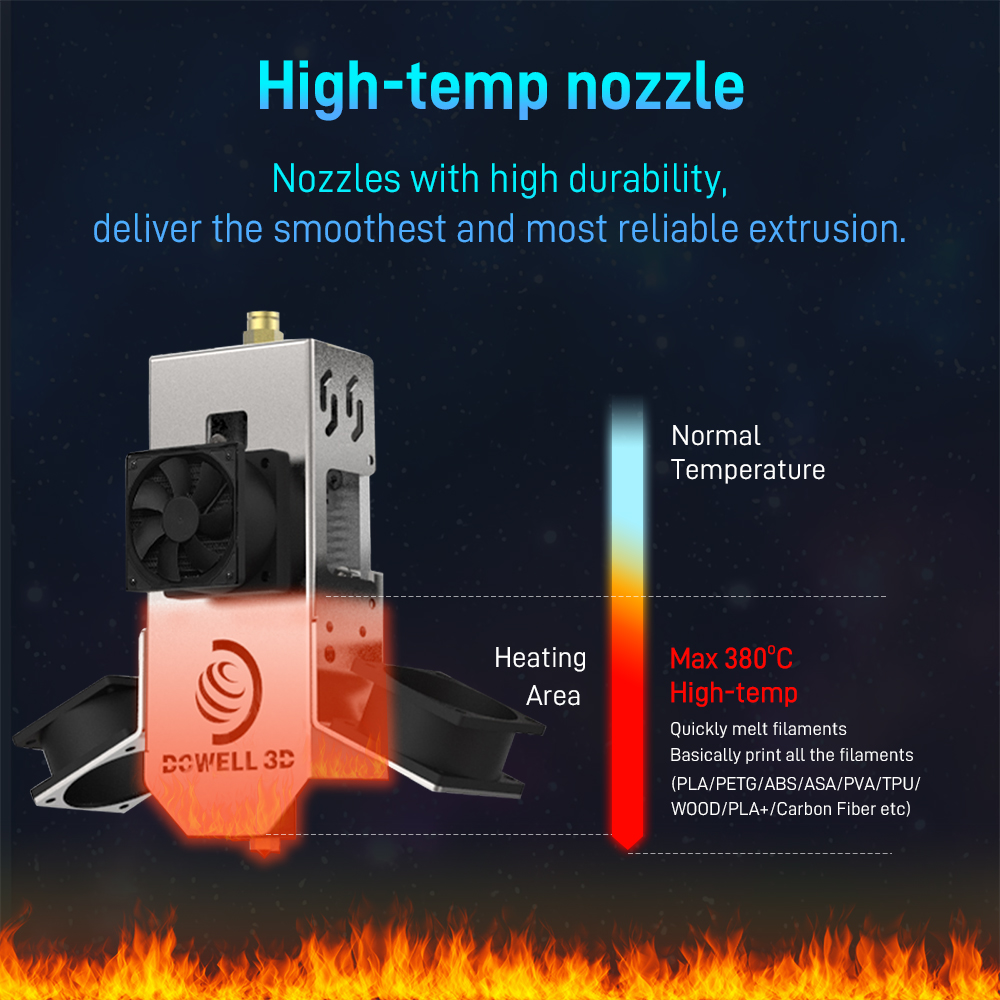

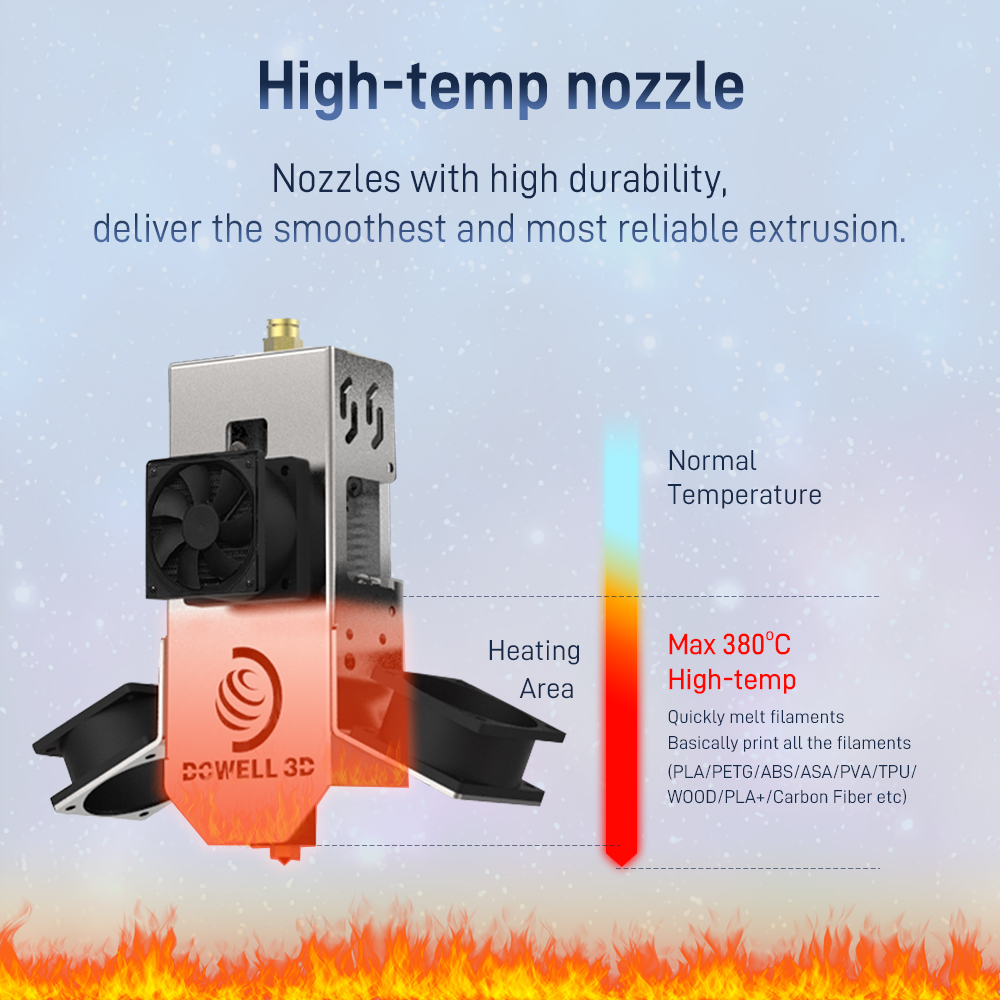

380℃ High Temperature Nozzle, Compatible With a Wide Range Of Engineering Filaments

The DM Plus utilizes a dual-gear drive system and a metal heating block, reaching temperatures up to 380°C. It easily melts

a wide range of 1.75mm filaments—from standard PLA to tough ABS, ASA, PETG, TPU, PVA, wood, and carbon fiber.

This offers unparalleled material flexibility, allowing you to choose the perfect filament for both conceptual prototypes and functional end-use parts.

Large Build Volume 3d Printer

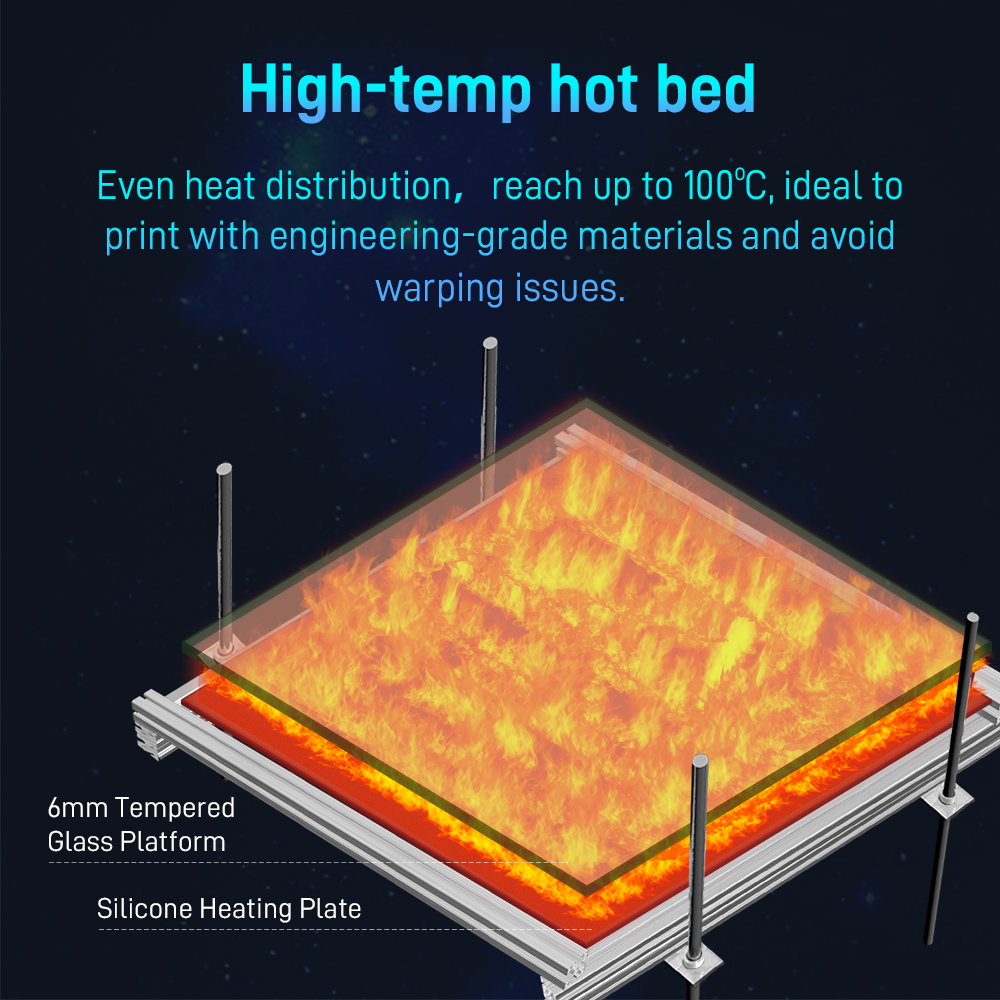

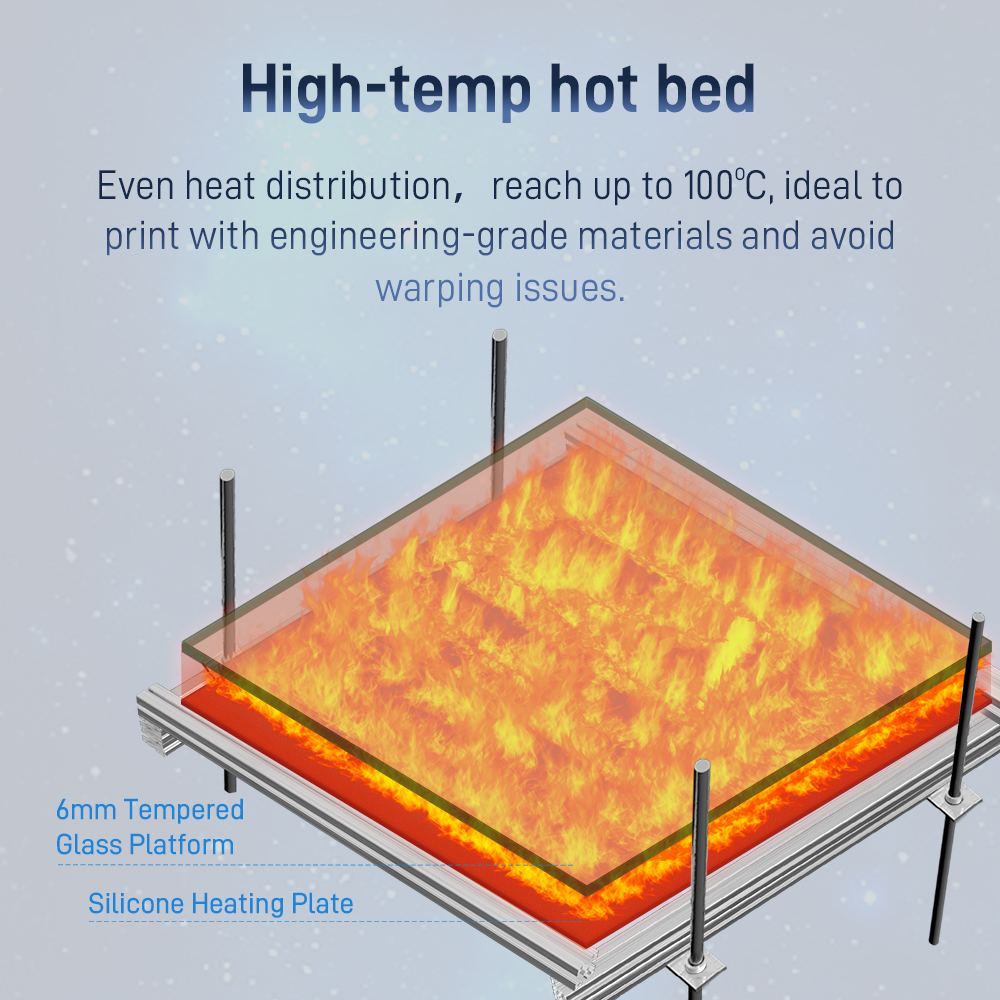

100°C High-Temperature Glass Heatbed

The printer features a high-temperature-resistant glass heated bed, capable of reaching temperatures up to 100°C. The glass platform

offers excellent flatness and uniform heat distribution, providing a strong and even adhesion for engineering plastics like

ABS effectively prevents warping and corner distortion during the printing of large models.

Rapid Prototype 3d Printer High Accuracy Machine

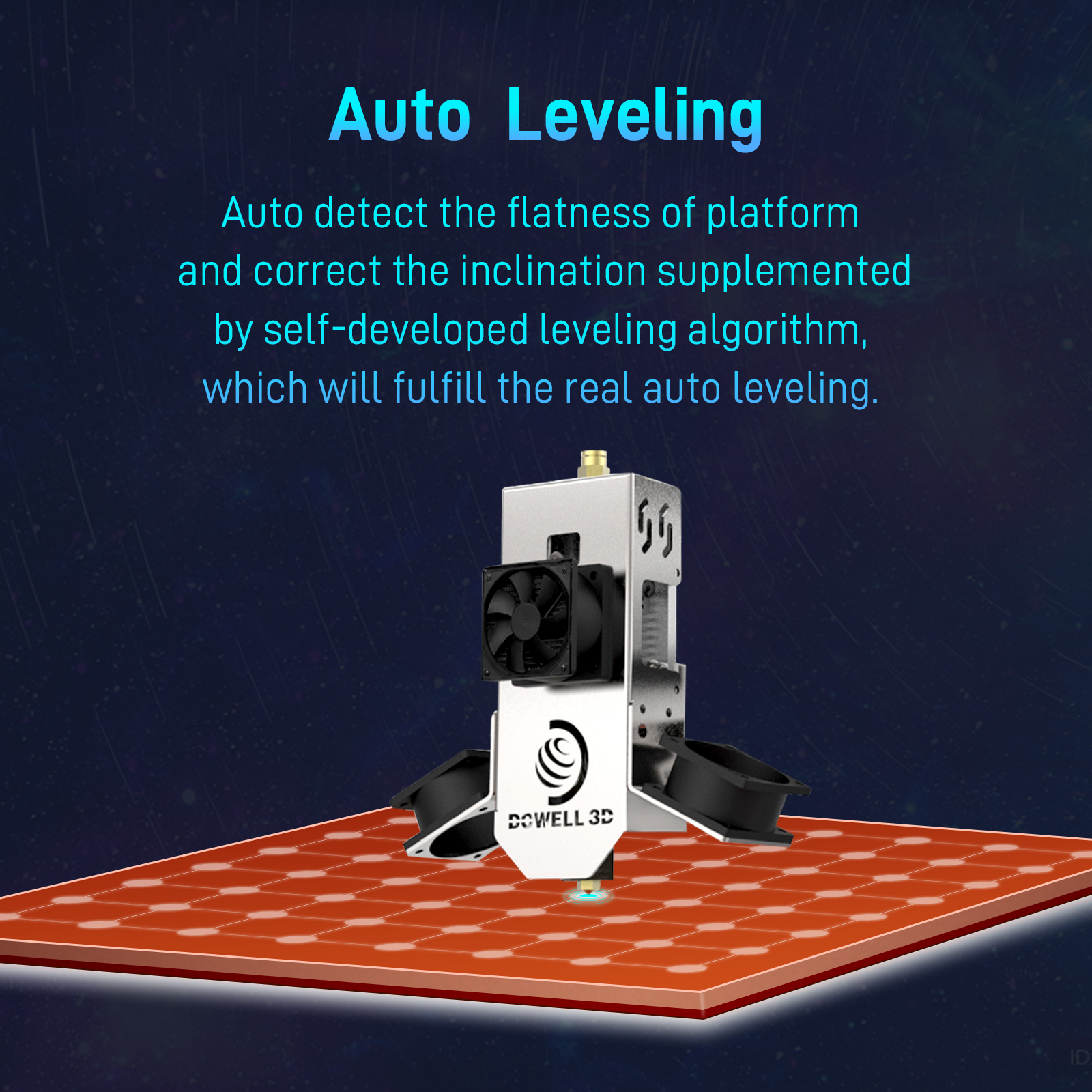

64-Point High-Precision Automatic Leveling System, Extremely Easy To Operate

The DM Plus industrial 3D printer features an advanced 64-point automatic leveling system. It automatically and accurately

detects the flatness of the entire build platform and compensates in real time. This ensures perfect first-layer print quality

across the entire build surface, significantly improving success rates and making it easy for even beginners to use.

High Quality 3d Printer Automotive Parts 3d Printing

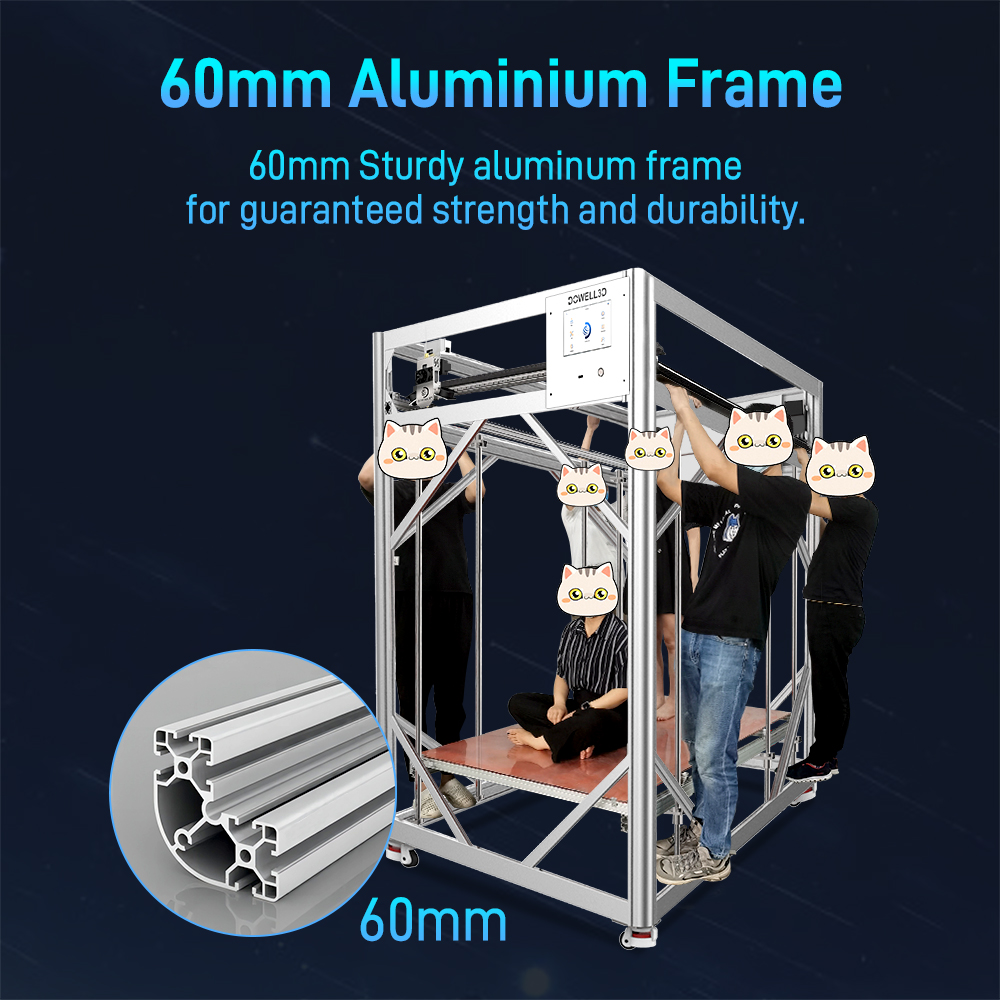

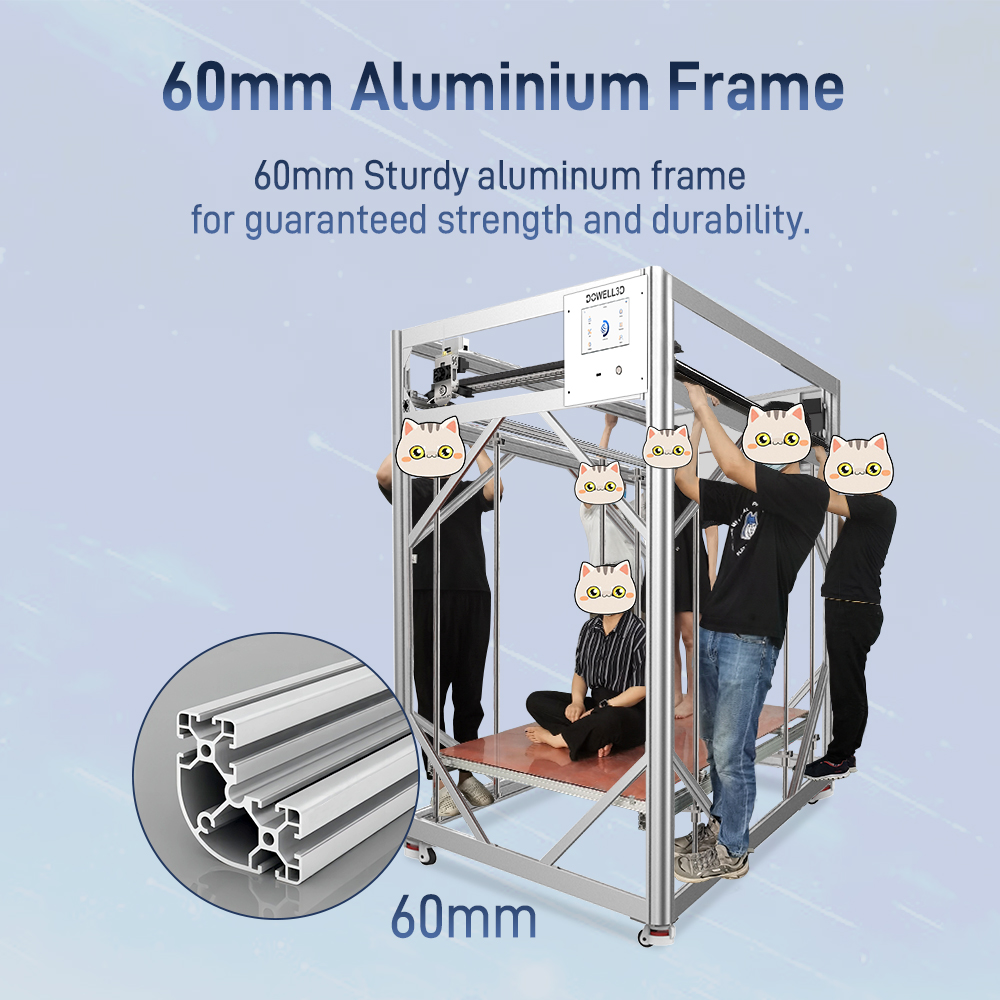

60mm aluminum alloy frame provides industrial-grade stability

The machine's body is constructed with a sturdy 60mm aluminum alloy frame, forming the machine's rigid backbone.

This design ensures extremely low vibration and jitter, even at high printing speeds of 500mm/s. This provides the

critical stability necessary for the continuous production of large, high-precision parts.

Large Build Volume 3d Printer

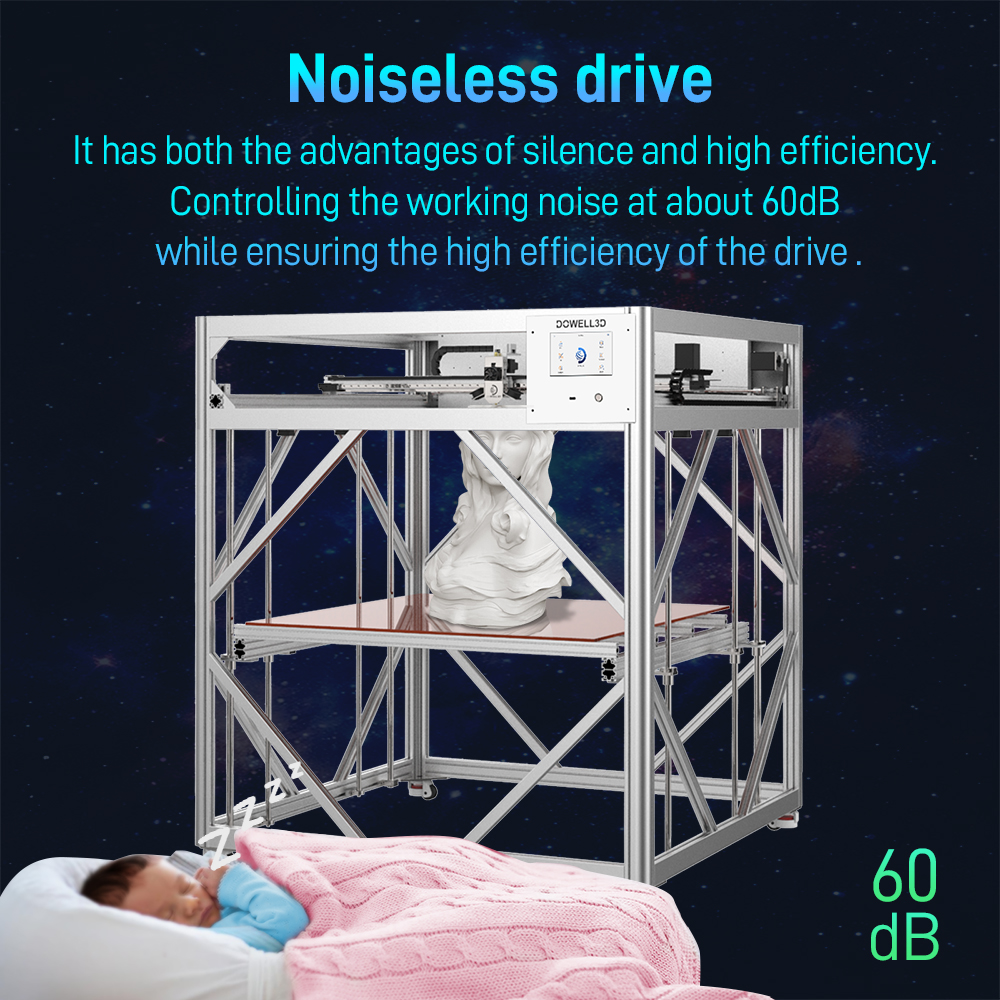

Low noise operation

DM Plus is carefully crafted with high-quality, silent components, resulting in an operating noise level as low as 60 dB.

This allows it to blend quietly into an office, lab, or studio environment without disturbing you or your colleagues.

Rapid Prototype 3d Printer High Accuracy Machine

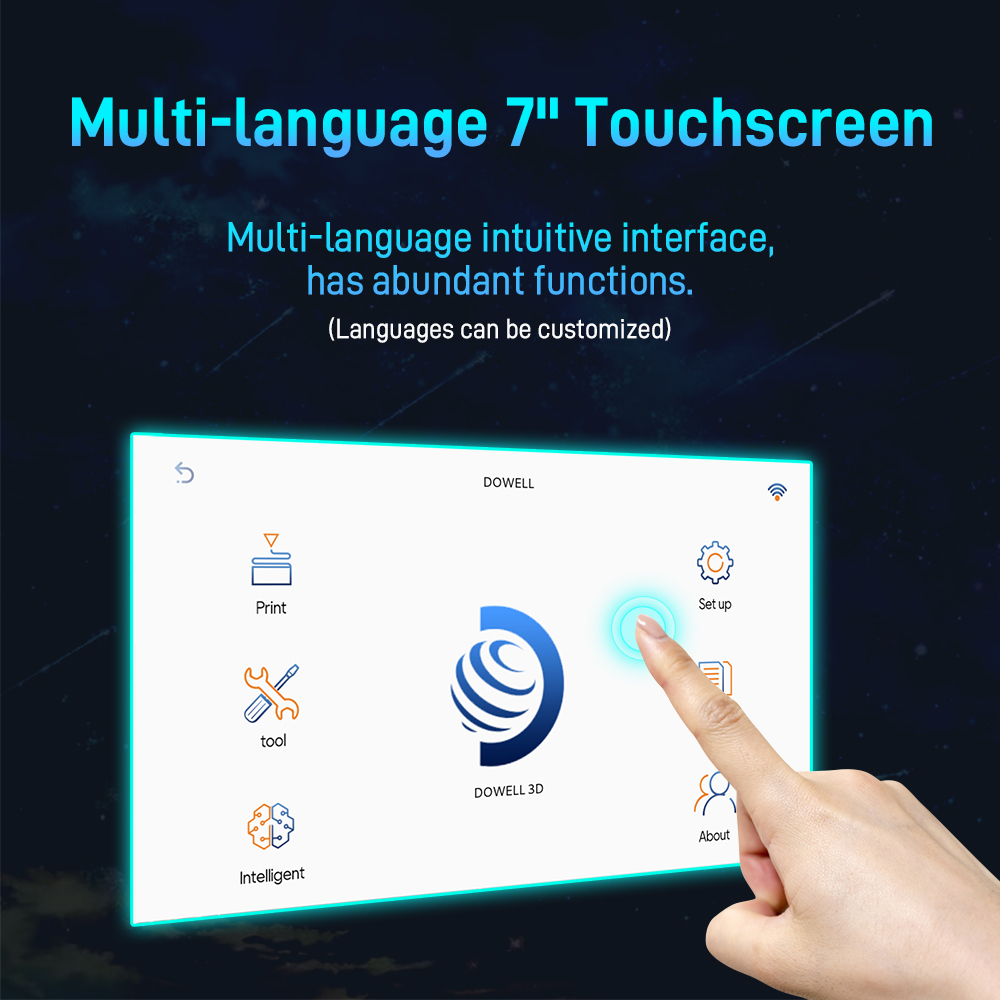

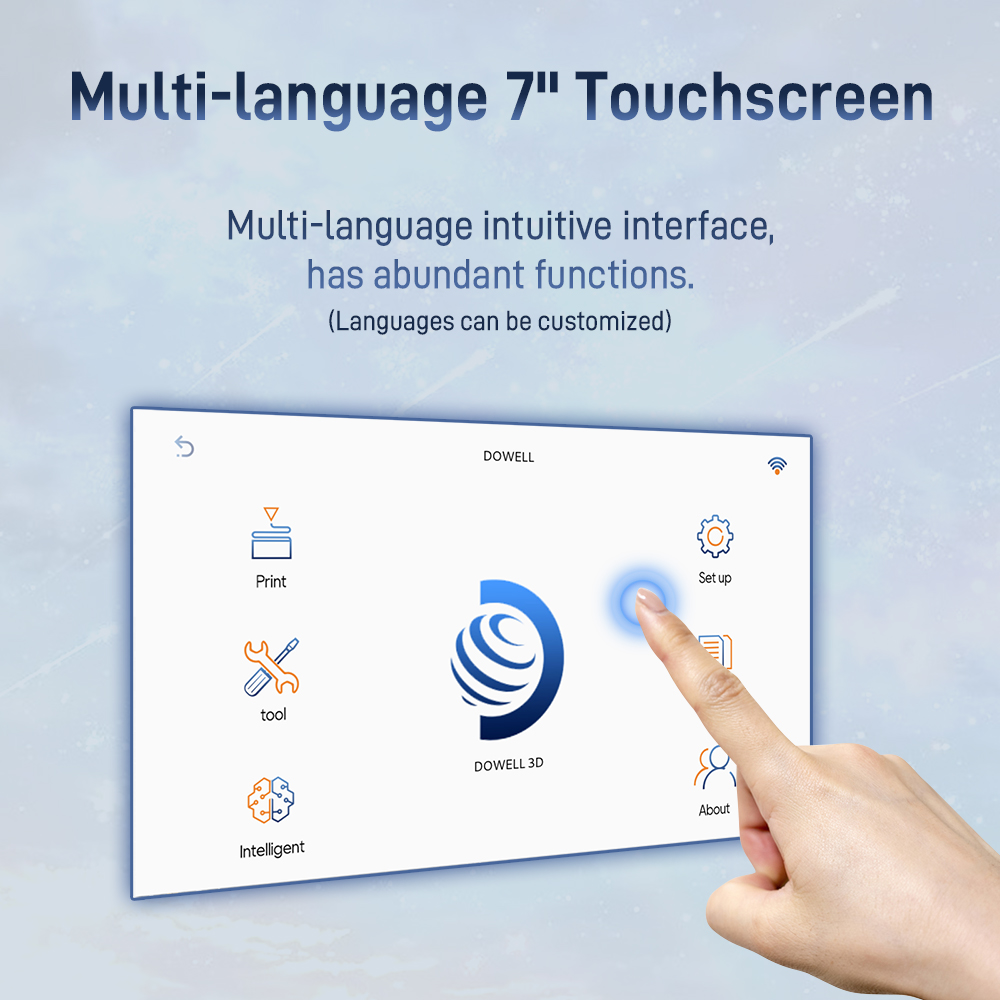

7-inch full-color touchscreen with multi-language support

The DM Plus high-precision industrial 3D printer features an intuitive 7-inch full-color touchscreen with a user-friendly

interface and clear icons. Support for multiple languages, including Simplified Chinese, Traditional Chinese, English,

German, French, and Italian ensure seamless operation and device setup for users worldwide.

High Quality 3d Printer Automotive Parts 3d Printing

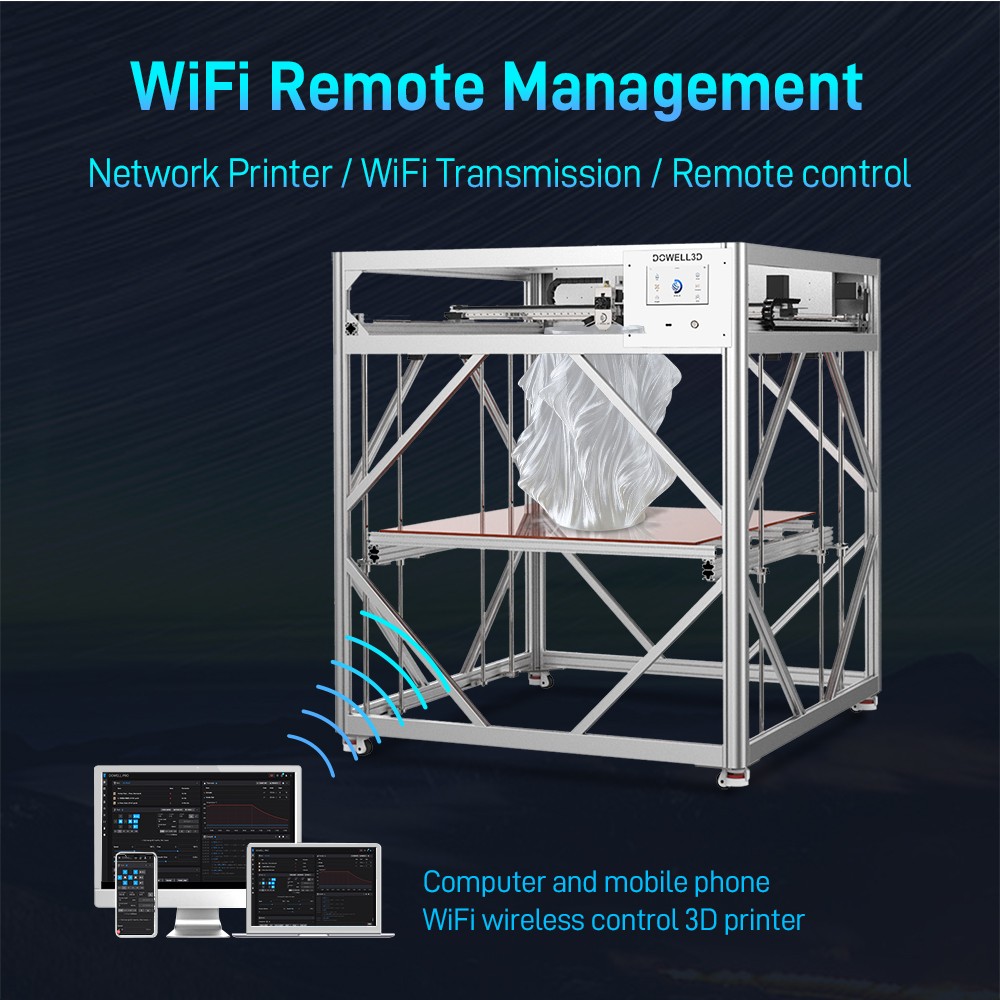

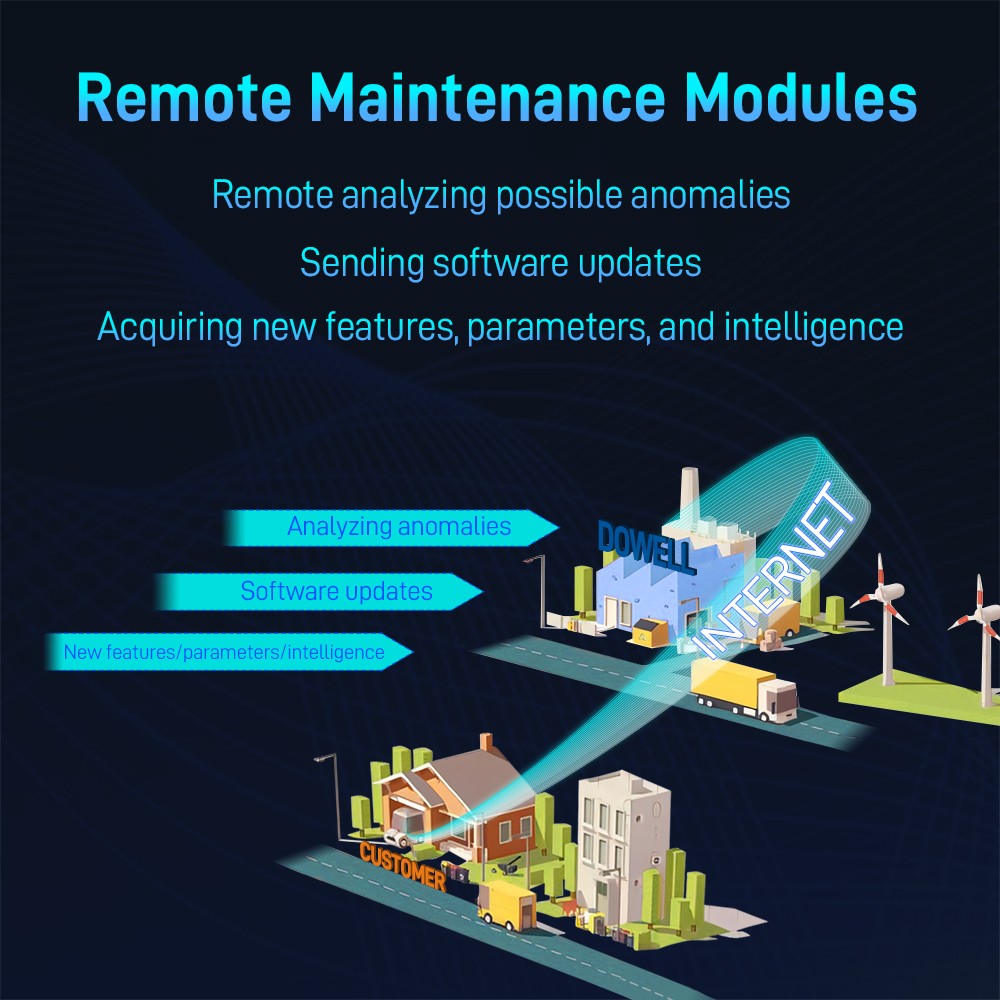

WiFi connection & Remote control

DM Plus features a built-in remote monitoring module and Wi-Fi connectivity, allowing you to easily manage your printer

over the internet. The system intelligently analyzes operating status and provides early warning of potential issues,

effectively reducing unplanned downtime. Furthermore, the printer supports remote firmware updates, ensuring your

device always has the latest features and performance optimizations, enabling truly intelligent remote operation and maintenance.

Large Build Volume 3d Printer
Rapid Prototype 3d Printer High Accuracy Machine

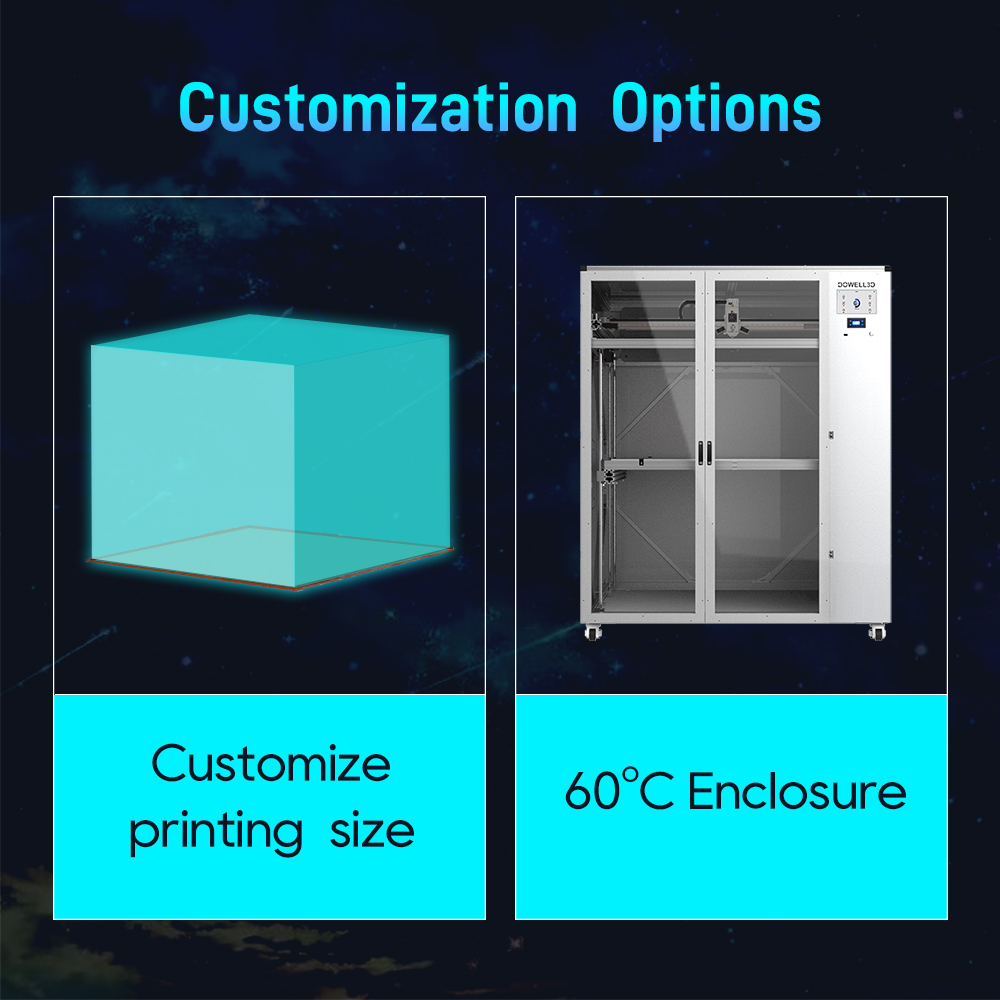

Customization options

The Dowell3D DM Plus series offers the perfect balance of industrial-grade high precision, impressive print speeds,

and user-friendly, intelligent operation. Beyond these essential features, Dowell3D printers also offer customization

services to add even more excitement to your printing work.

1. Customizable size

2. 60°C constant temperature enclosure

Contact us to learn more!

High Quality 3d Printer Automotive Parts 3d Printing

Large Build Volume 3d Printer

Customer Feedback Case

Rapid Prototype 3d Printer High Accuracy Machine

High Quality 3d Printer Automotive Parts 3d Printing

About Us

Large Build Volume 3d Printer

Our advantage

Rapid Prototype 3d Printer High Accuracy Machine

Factory Direct Sales

We are one of the largest 3D printer manufacturers in the global market, providing high-quality products at competitive prices. We mainly produce a variety of professional-grade 3D printers and environmentally friendly printing filaments.

High Quality 3d Printer Automotive Parts 3d Printing

Fully customized service

We understand that every customer's needs are unique. Therefore, DOWELL3D offers highly flexible customization services. From print size and material compatibility to specific functional modules, we can provide personalized design and production based on your specific application scenarios and technical requirements.

Large Build Volume 3d Printer

24-hour Professional Customer Service

Our dedicated customer service team is always ready to assist you, answering queries and providing support whenever needed.

All inquiries will be responded to within 24 hours.

Rapid Prototype 3d Printer High Accuracy Machine

Continuous Innovation

We are committed to continual technological advancements and service enhancements to elevate your purchasing and product experience.

FAQ

1. Are you a trading company or a manufacturer?

We are a 3D printer manufacturer with more than 11 years of R&D experience.

2. What certifications do you have?

CE, FCC, ROHS, etc.

3: Do you accept OEM/ODM orders?

Of course, we have our own R&D team to support the customization of motherboard design and machine design, testing, and production.

4. What services do we provide?

Delivery terms accepted: EXW, FOB, CFR, CIF, DDP, DDU

Shipping methods accepted: Sea freight, Air freight, DHL. FedEx, UPS

Accepted payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY

5. Is there a warranty for overseas customers?

Yes, the machine comes with a one-year warranty. We have professional technical engineers and instructional videos.

The machine is fully automatic and easy to operate.
