Fast 3d Printer Industrial Grade High Precision Automatic Leveling Impresora 3d Noiseless Drive Customizable
- DOWELL3D
- China
- 10-16 days
- 1000 sets/month
The Dowell3d DMPlus series is an industrial-grade FDM 3D printer with a maximum build volume of 1200×2000×2000 mm, making it suitable for applications in various industries, including sculpture and automotive. It features advanced features such as a 64-point mesh bed with automatic leveling, a 380°C high-temperature nozzle, and a 100°C heated glass bed. Equipped with dual extrusion, Wi-Fi connectivity, and customizable features, it ensures printing accuracy, speed, and versatility.
DM Plus Series 3D Printer

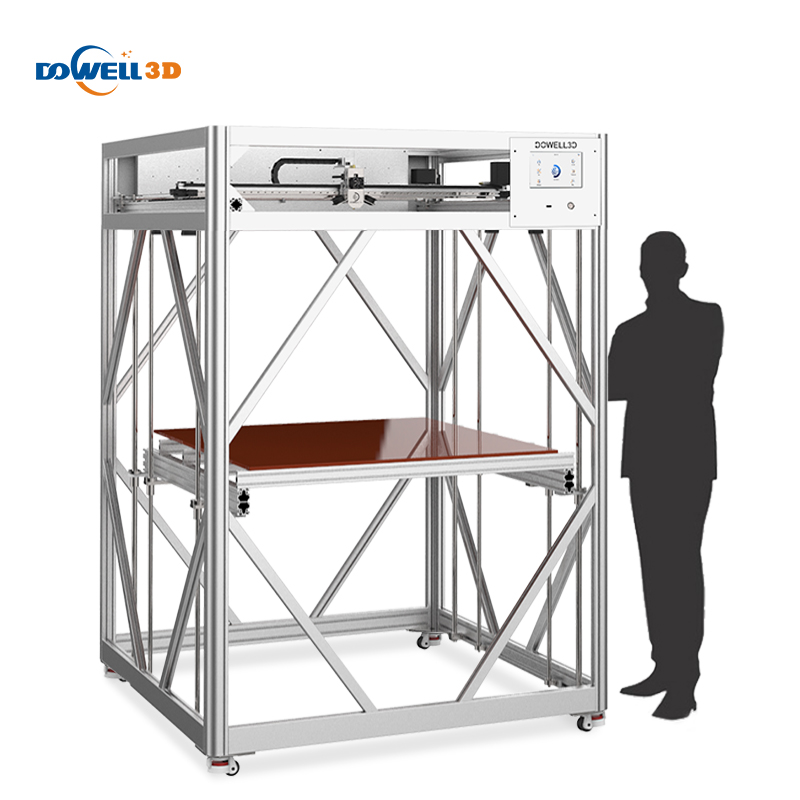

The Dowell3D DM Plus series 3d printer offers a large-scale printing volume of up to 1200x2000x2000mm, supporting
multi-color and various materials like PLA, ABS, ASA, PETG, TPU, WOOD, and carbon fiber. It features a 7-inch touchscreen, auto-leveling,
a high-temp nozzle (up to 380°C), and a 100°C heated bed for superior adhesion. Equipped with industrial-grade ball screws
and linear guides for precision, it ensures fast prototyping with speeds up to 500mm/s.
The DM Plus 3D printer is ideal for businesses, professional studios, and educational institutions seeking to improve
prototyping and production efficiency.
Product name | Dowell DM Plus series 3d printer |
| Print Technology | FDM (Fused Deposition) Impresora 3D |
| Frame | 60mm aluminum section |
| Printing size | From 600*600*600mm to 1200*2000*2000mm |
| Nozzle diameter | 0.4/0.6/0.8mm |
| Nozzle temperature | 0-380℃ |
| Bed temperature | 0-100℃ |
| Location accuracy | 0.02mm |
| Layer height accuracy | 0.04-0.6mm |
Extrusion flow rate | Max400g/hour |
Printing speed | 150- 500mm/s |
Operation firmware | Independent research and development |
Operation interface | 7''full color touch screen |
| File format | STL/OBJ/GCOD |
Filament available | 1.75mm PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, etc |
Connectio | SD Card / U Disk / WiFi |
Basic functions | *Auto leveling *Visible Printing status *Filament sensor *Visible temperature graph *Wifi Connection *Installable external camera *Gcode viewer *Configuration editable *Z-offset adjustment *Emergency stop button *History Record *Speed & extrusion & cooling adjustment |
| Optional | *60°c Enclosure *Customize printing size |
FDM 3D Printer Detailed Description

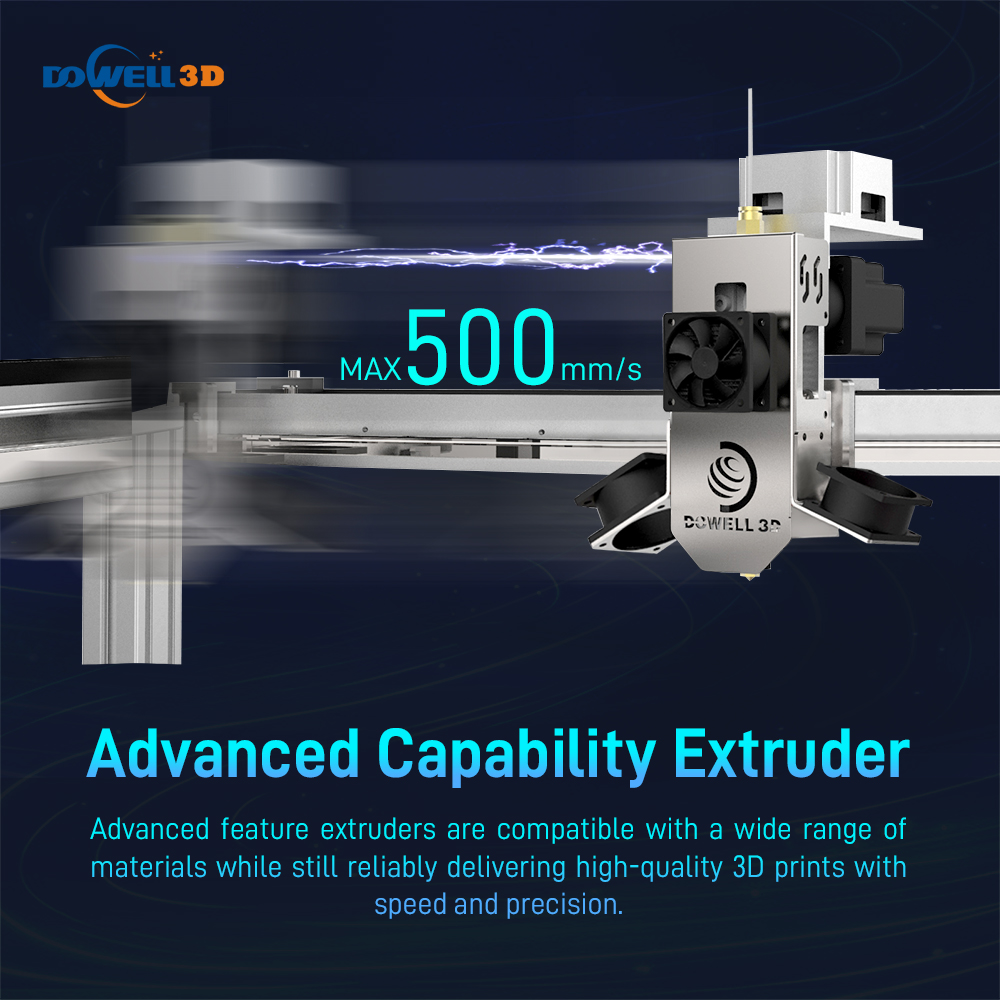

150-500 mm/s Fast Printing, Significantly Improving Efficiency
The DM Plus 3D printer offers a rapid print speed of up to 500mm/s and an extrusion rate of 400g/h. Combined with
Dowell's independently developed high-performance firmware significantly shortens the time from design to production.
Whether you're rapidly iterating prototypes or producing small batches, it helps you stay one step ahead and seize market opportunities.

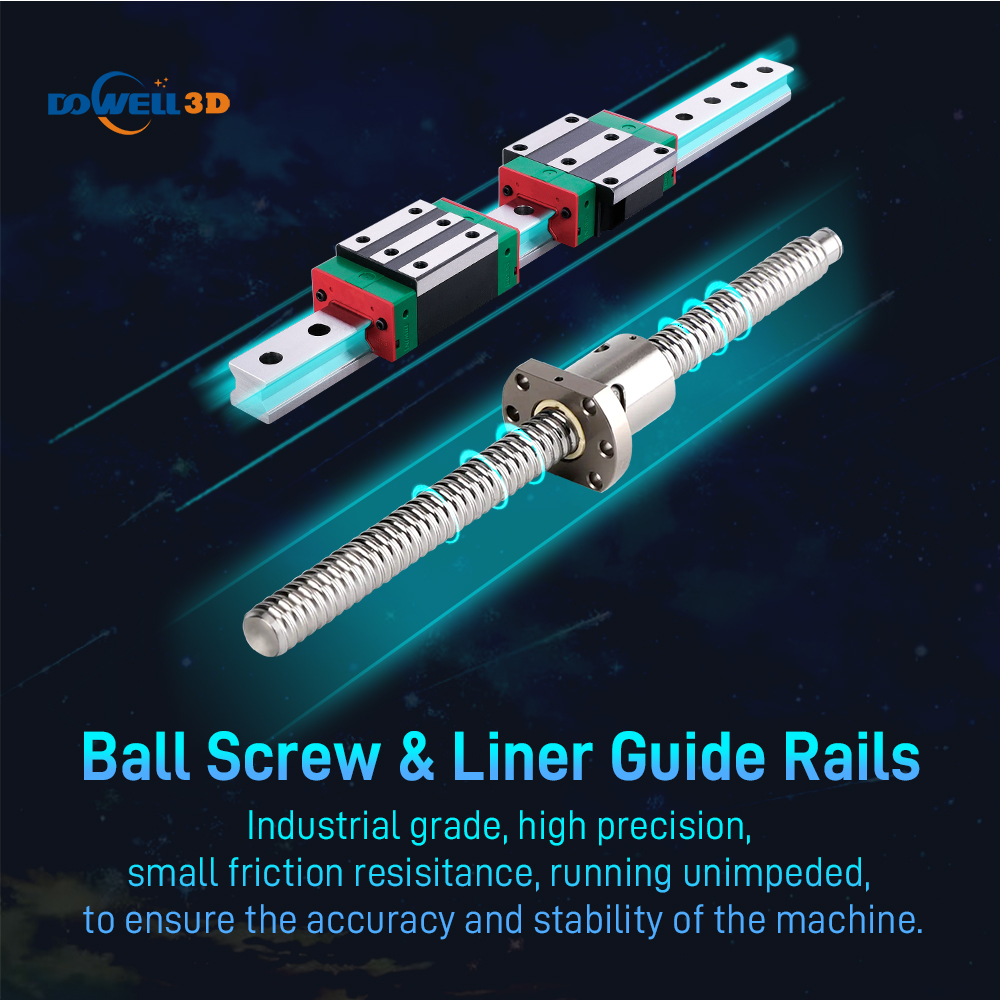

Industrial Ball Screw and Linear Guides for Precision Positioning
The Z-axis utilizes an industrial-grade ball screw, while the X and Y axes employ precision linear guides, forming a high-accuracy,
high-rigidity motion system. This combination eliminates backlash, ensuring consistent layer height and precise printhead
positioning, achieving a repeatability positioning accuracy of up to 0.02mm for impeccable model details.

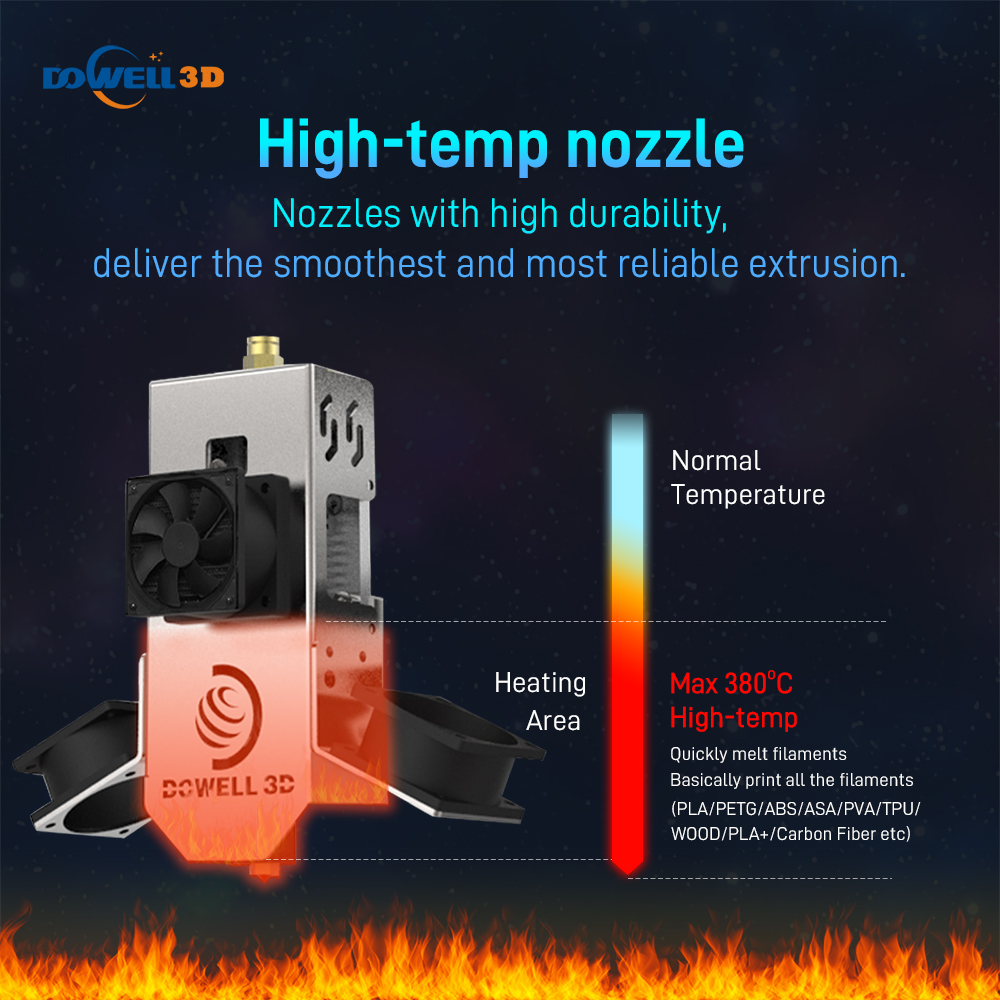

380℃ High Temperature Nozzle, Compatible With a Wide Range Of Engineering Filaments
The DM Plus utilizes a dual-gear drive system and a metal heating block, reaching temperatures up to 380°C. It easily melts
a wide range of 1.75mm filaments—from standard PLA to tough ABS, ASA, PETG, TPU, PVA, wood, and carbon fiber.
This offers unparalleled material flexibility, allowing you to choose the perfect filament for both conceptual prototypes
and functional end-use parts.
100°C High-Temperature Glass Heatbed
The printer features a high-temperature-resistant glass heated bed, capable of reaching temperatures up to 100°C. The
glass platform offers excellent flatness and uniform heat distribution, providing a strong and even adhesion for engineering
plastics like ABS effectively prevent warping and corner distortion during the printing of large models.

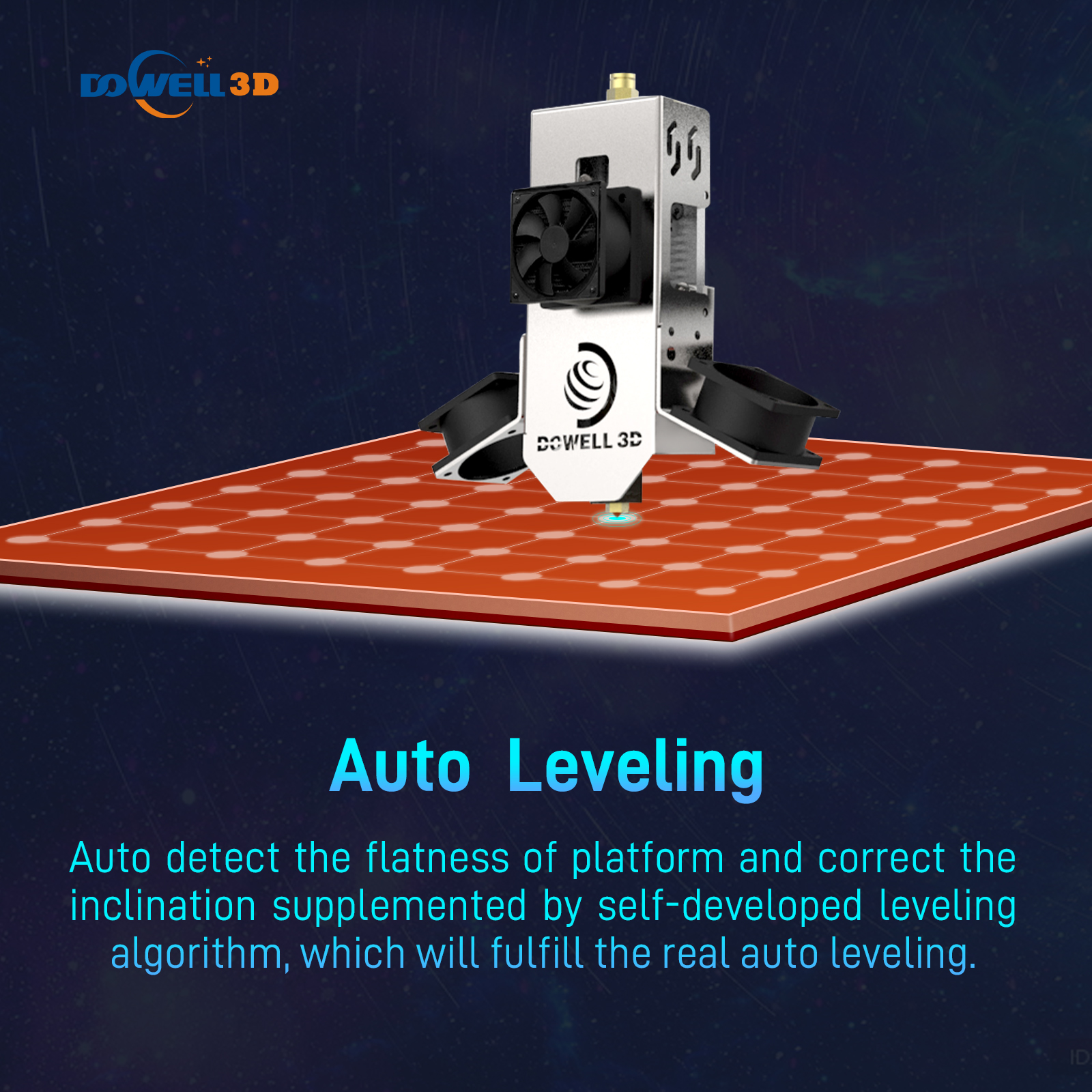

64-Point High-Precision Automatic Leveling System, Extremely Easy To Operate
The DM Plus industrial 3D printer features an advanced 64-point automatic leveling system. It automatically and accurately
detects the flatness of the entire build platform and compensates in real time. This ensures perfect first-layer print quality
across the entire build surface, significantly improving success rates and making it easy for even beginners to use.
60mm thick aluminum alloy frame provides industrial-grade stability
The machine's body is constructed with a sturdy 60mm aluminum alloy frame, forming the machine's rigid backbone.
This design ensures extremely low vibration and jitter, even at high printing speeds of 500mm/s. This provides the
critical stability necessary for the continuous production of large, high-precision parts.

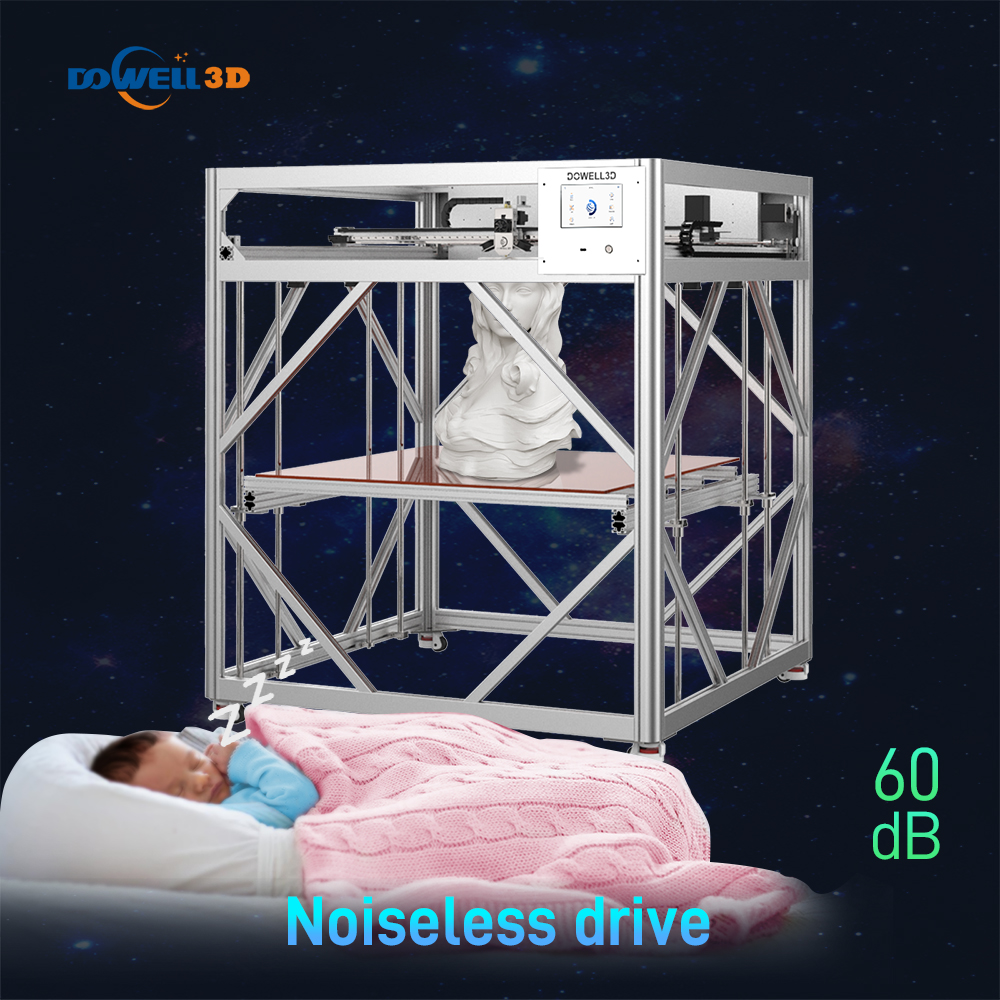

Low noise operation
DM Plus is carefully crafted with high-quality, silent components, resulting in an operating noise level as low as 60 dB.
This allows it to blend quietly into an office, lab, or studio environment without disturbing you or your colleagues.

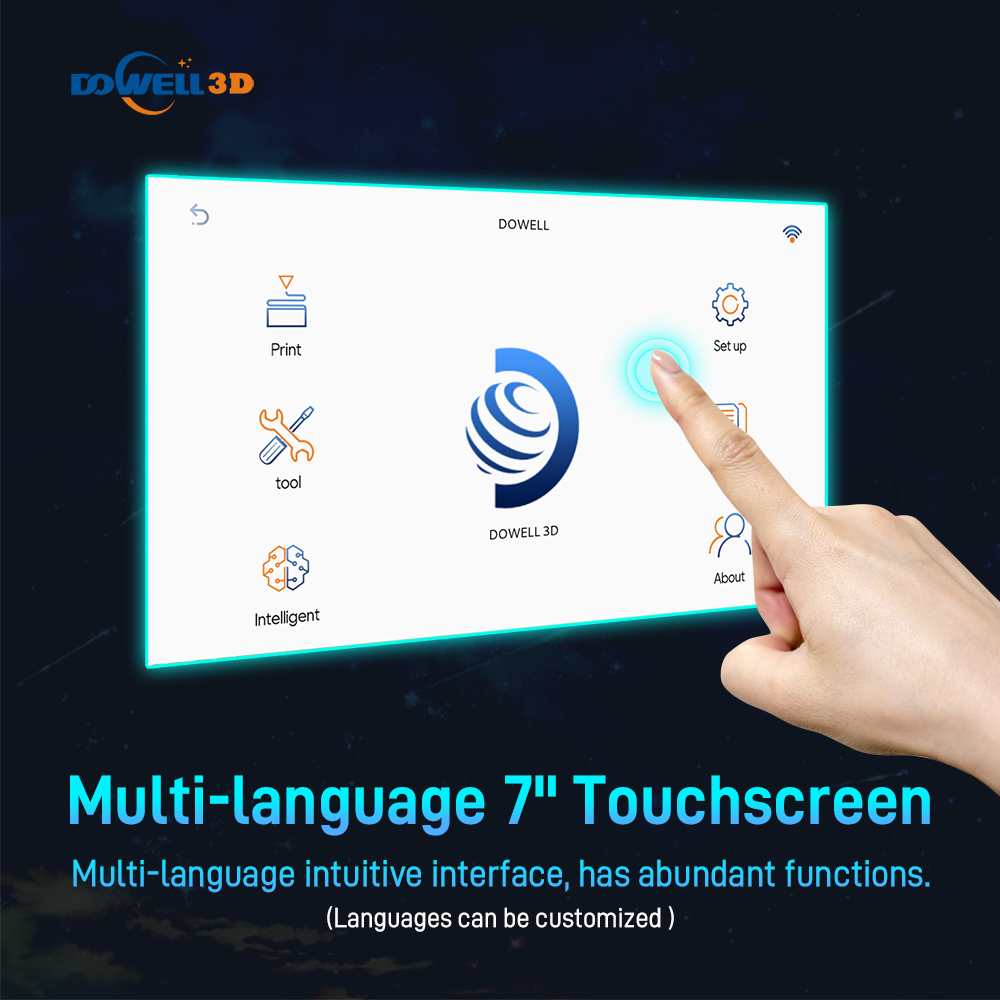

7-inch full-color touchscreen with multi-language support
The DM Plus high-precision industrial 3D printer features an intuitive 7-inch full-color touchscreen with a user-friendly
interface and clear icons. Support for multiple languages, including Simplified Chinese, Traditional Chinese, English,
German, French, and Italian ensure seamless operation and device setup for users worldwide.

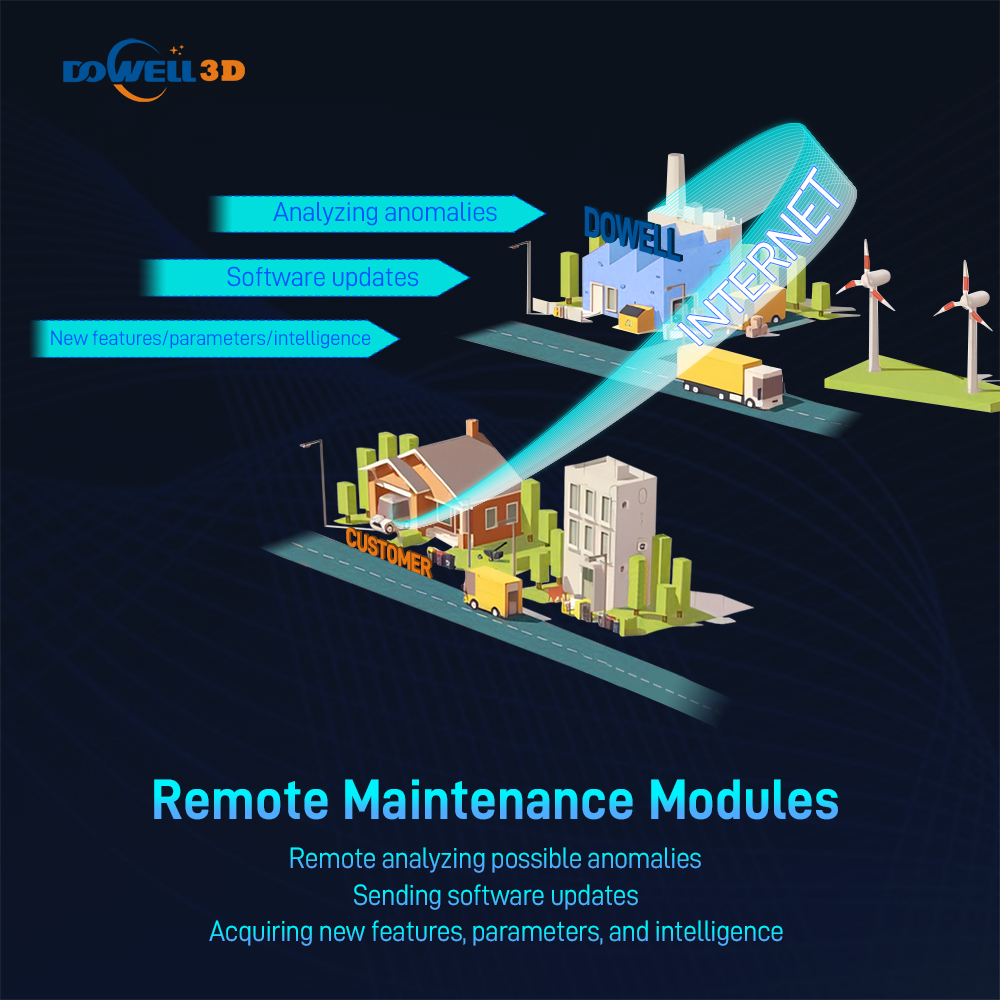

WiFi connection & Remote control
DM Plus features a built-in remote monitoring module and Wi-Fi connectivity, allowing you to easily manage your printer
over the internet. The system intelligently analyzes operating status and provides early warning of potential issues,
effectively reducing unplanned downtime. Furthermore, the printer supports remote firmware updates, ensuring your
device always has the latest features and performance optimizations, enabling truly intelligent remote operation and maintenance.
Customization options
The Dowell3D DM Plus series offers the perfect balance of industrial-grade high precision, impressive print speeds,
and user-friendly, intelligent operation. Beyond these essential features, Dowell3D printers also offer customization
services to add even more excitement to your printing work.
1. Customizable size
2. 60°C constant temperature enclosure
Contact us to learn more!
