Dowell 3D Impresora 3d hot sale high precision plastic FDM 3D printing machine large industrial 3d printer
- Dowell 3D
- Luoyang, China
- 10-16 days
- 1000 set/month
- Variety of model sizes available, standard max printing size 1200*2000*2000mm, provides customized service.
- 100℃ high temperature platform
- Max nozzle temperature 380℃
- 0.4/0.6/0.8mm nozzle size
- Automatic leveling system
-Standard function: filament sensor, auto resume from power off, and wifi connection
-Customized accept

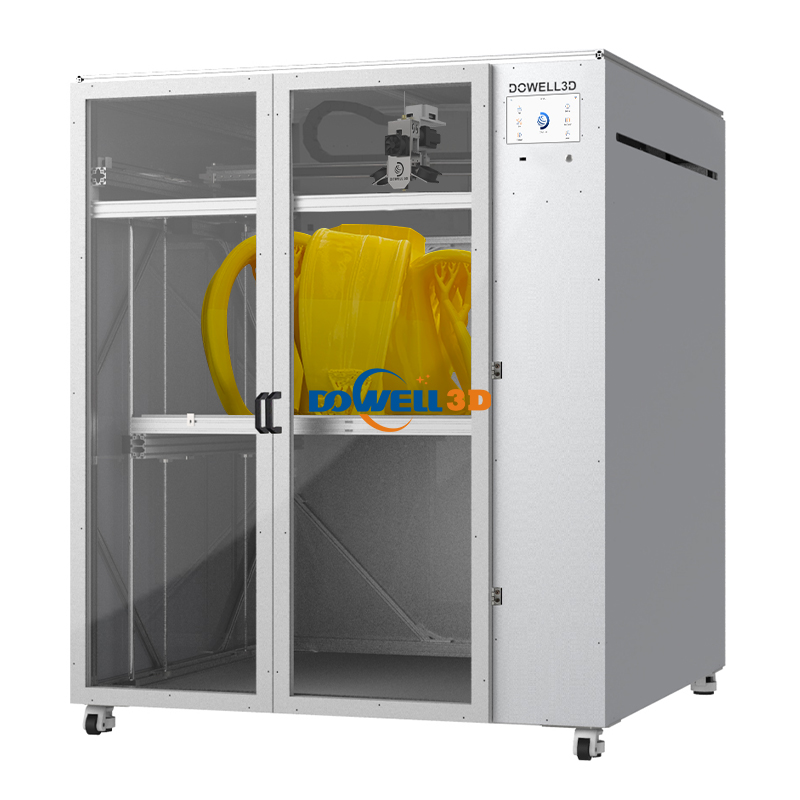

Dowell 3d large industrial FDM 3d printer
The Dowell3d was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible.
It is embedded with many advanced technologies for ultra-big, impressive prints.
It will be your best choice without a doubt.
If you are looking for an industrial, large-scale 3D printer for prototype and engineering-grade materials.
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
Advantages of the Dowell 3D printing machine
1, Large format 3D printer industrial, max size 1200*2000*2000mm
2, High-temperature nozzle 380℃. (Nozzle size 0.4/0.6/0.8mm)
3. 100℃ high temperature platform, more filaments printed with excellent quality.

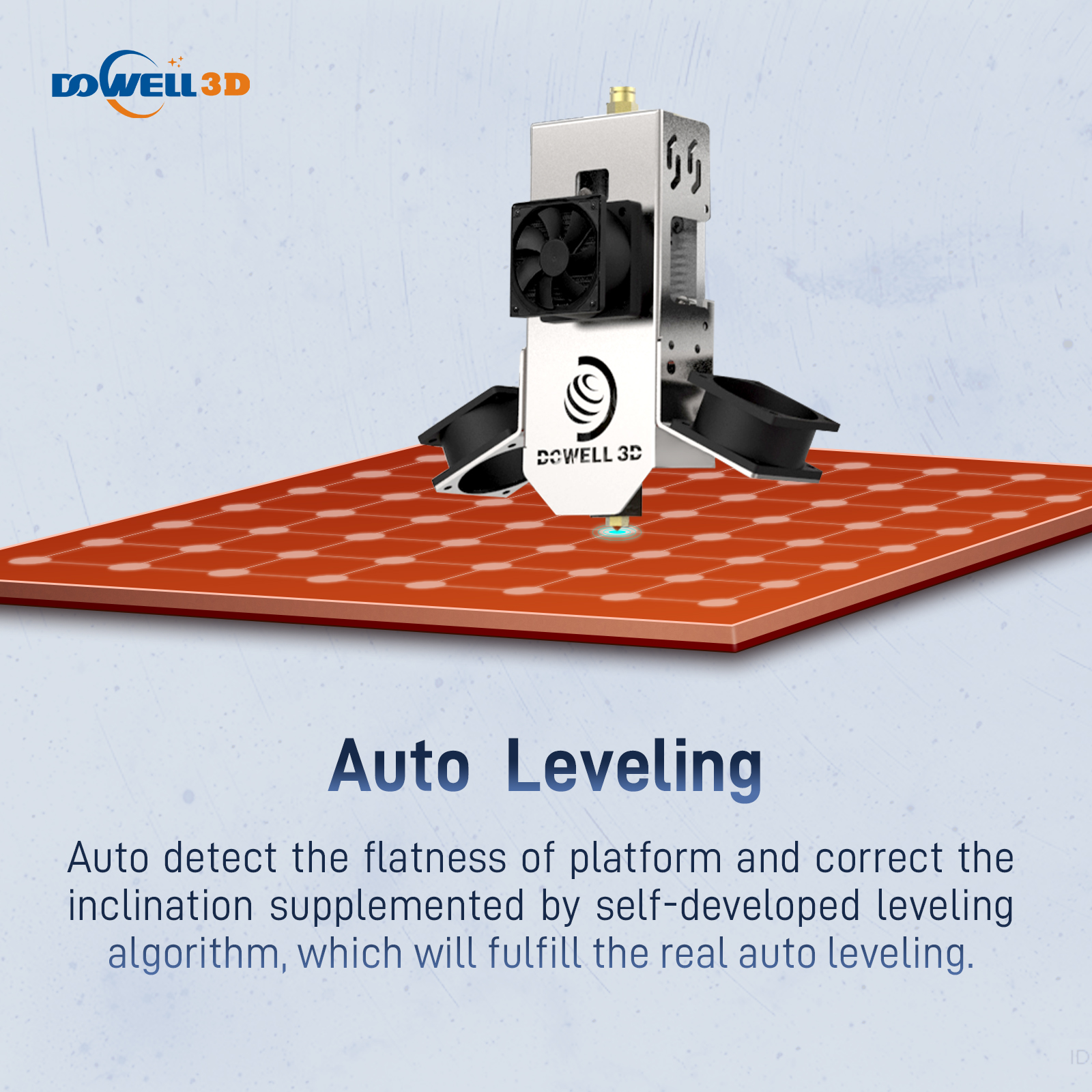

4, Automatic leveling system
5, High-performance motherboard
6, Brand power with good quality
Technical Specs
| Printing | |
| Print Technology | Fused Deposition Modeling |
| Build Volume | DM Series 600*600*600 to 1200*2000*2000mm |
| Layer Resolution | 0.02 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, Nylon, etc |
| Nozzle Diameter | 0.4-0.6-0.8mm |
| Print File Type | STL, OBJ, Gcode |
| Temperature | |
| Nozzle Temperature | 0~380 ℃ |
| Bed Temperature | 100 ℃ (150°c optional) |
| Software | |
| Software | Dowell, Simplify 3D, Cura, Slic3r, etc |
| File Types | STL,OBJ,Gcode,SVG |
| Operating Systems | Windows |
| Speed | |
| Printing speed | 150-500 mm/s |
| Extrusion flow rate | Max 400g/hour |
| Electrical | |
| Power | 110~220 V |
| Screen | 7-inch full color touch screen (multi-language) |
| Connectivity | USB /U Disk |
| Optional | 60℃ enclosure, printing size |
Details
1. Strong aluminium profile structure, printing is more stable.
The machine's body is constructed with a sturdy 60mm aluminum alloy frame, forming the machine's rigid backbone.
This design ensures extremely low vibration and jitter, even at high printing speeds of 500mm/s. This provides the critical
stability necessary for the continuous production of large, high-precision parts.
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine

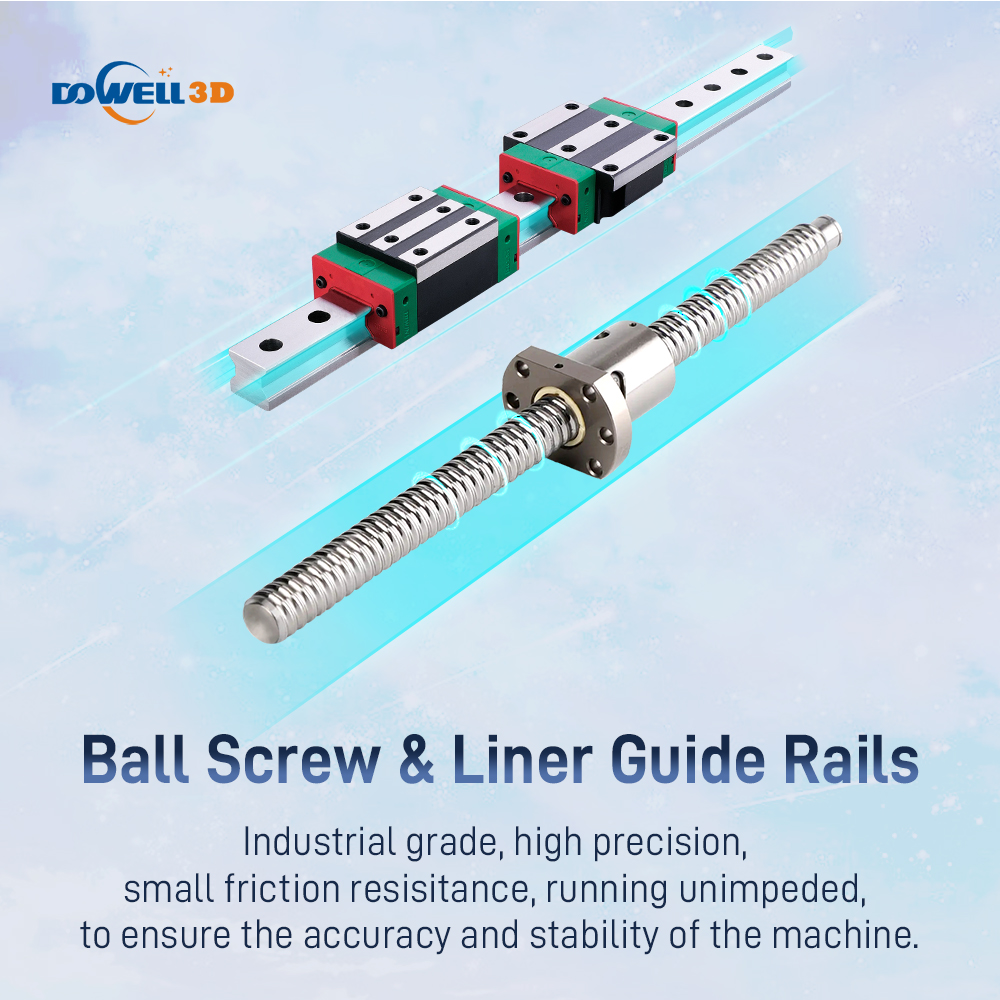

2. Stable platform and industrial-grade linear rail.
Dowell DM Plus series printers are equipped with ball screw + linear guide rail as standard, which has low friction resistance
and ensures precise positioning and consistent and smooth movement throughout the printing process, achieving industrial-
grade high printing accuracy.
3. Tank chain & flexible wire
Using a tank chain with special super flexible wire, the wires can withstand ten million times of bending.
The wires are neat and beautiful, stable and durable!
4. Tempered platform & high-temperature bed
Silicon rubber heater, the whole bed is heated evenly.
The highest temperature can be up to 100℃(optional 150℃).
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
5. High-temperature nozzle & proximal anti-collision
The highest nozzle temperature can reach 380℃
We also have a proximal feeder & nozzle anti-collision system.
6. Large-size screen (7 inch)
The intuitive user interface on the touchscreen allows you to access a variety of useful functions, such as Wi-Fi connection,
switching languages, changing print parameters, accelerating, adjusting temperature, and calibrating the Z-axis offset.
Available in 15 languages, please contact us for more information.
fdm3d printer large scale 3d printer industrial 3d printer 3d printer machin
STANDARD MODEL SIZES
Customizable options
In addition to the basic features, the DM Plus series offers the following two customization options:
1. Customized dimensions
2. 60°C constant temperature enclosure
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
Customer cases printed by the Dowell 3d printer
About DOWELL3D
Luoyang Dowell Electronic Technology Co., Ltd. was established in Luoyang, China, in 2014. As one of the world's
largest 3D printer manufacturers, we specialize in providing efficient, affordable, high-quality 3D printers and eco-friendly
printing filaments for individuals, families, schools, and businesses.
Our Services:
1) Highly competitive pricing
2) Recommending the most suitable product based on our project experience
3) An excellent technical team and comprehensive after-sales service; all inquiries will be responded to within 24 hours
4) Efficient OEM/ODM services
5) We are committed to continuous technological advancement and service improvements to enhance your purchasing and product experience
FAQ
1. Are you a trading company or a manufacturer?
We are DOWELL, a 3D printer manufacturer with over 11 years of R&D experience.
2. What certifications do you have?
CE, FCC, ROHS, etc.
3. What payment method is available for you?
T/T (Bank transfer), PayPal, Western Union, Credit card, WeChat Pay, Ali Pay, T/T
4. Could you send products to my country?
Yes, we do business in every corner of the world. Please contact us to consult the details delivery charge.
5. How do you guarantee the quality of the printer?
We conduct 100% testing before shipment. We provide test photos and videos before shipment.
We guarantee that our 3D printers will be free of any quality issues before shipment. Once confirmed, we will arrange shipment.
6. How about the after-service?
Our printers have a 1-year warranty.
And if you have any printing problems, our after-service team will respond quickly to solve your problem via video or online service.
