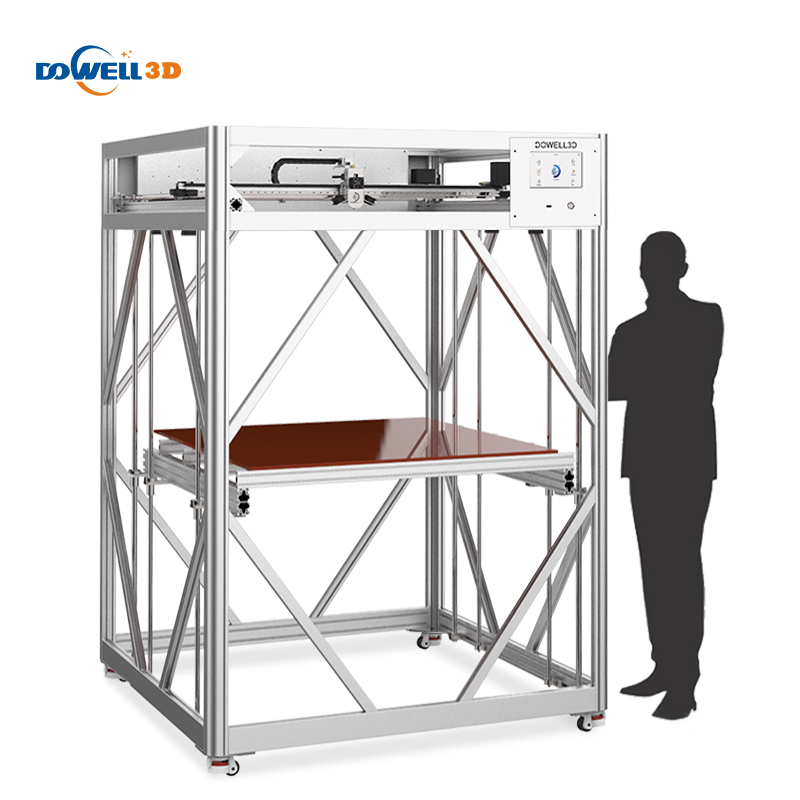

Dowell 1000*1400*1600mm Large 3d Printer High Accuracy 3d Automotive Parts Printing Machine

Luoyang Dowell Electronic Technology Co., Ltd. was established in Luoyang, China, in 2014. With 11 years

of industry experience, the company specializes in the development and sales of industrial-grade 3D printers,

providing intelligent, high-precision, and multi-material printing solutions. Our company is trusted by

professional customers worldwide and has received 100% positive customer reviews.

We also have a dedicated customer service team ready to help you, answer your questions, and provide

support whenever you need it.

This FDM 3D printer is widely used in various industries such as furniture, education, aviation, automobile,

new energy, outdoor sculpture, advertising, industrial applications, etc.

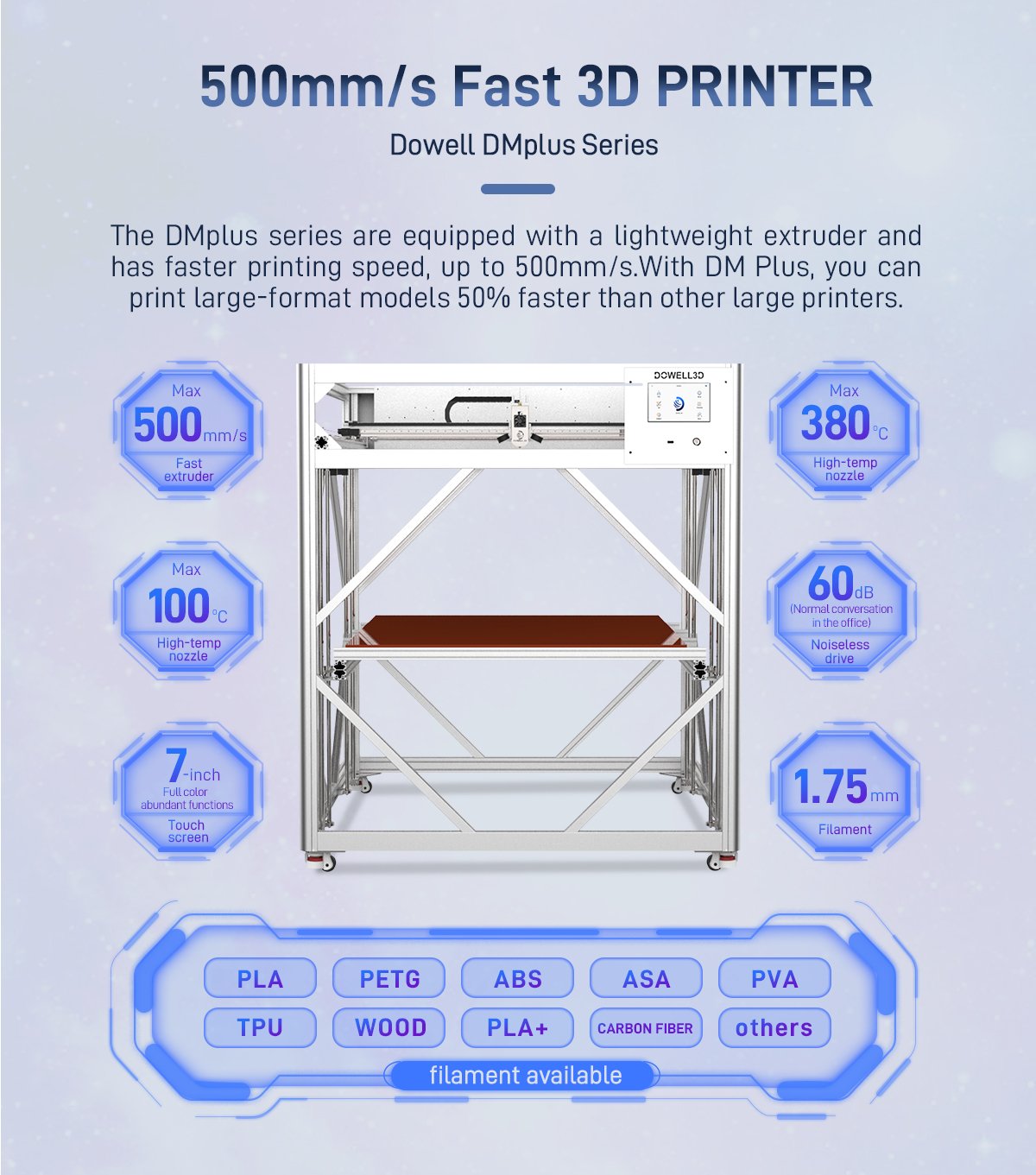

  DM Plus Series Industrial 3D Printer

• -380°C high-temperature nozzle (capable of printing a wide range of filaments)

• -60 mm durable frame (strong load-bearing capacity)

• -Industrial grade ball screw + linear guide rails (precise positioning)

• -Smart features (convenient remote control and maintenance)

• -High-precision automatic leveling system (easy to operate)

• -Fast print speeds of 150-500 mm/s (accelerate printing speeds)

• -100℃ high temperature glass hot bed, not easy to deform, good thermal conductivity

Product name	Dowell DM1014-16 Plus 3d printer
Print Technology	FDM (Fused Deposition) Impresora 3D

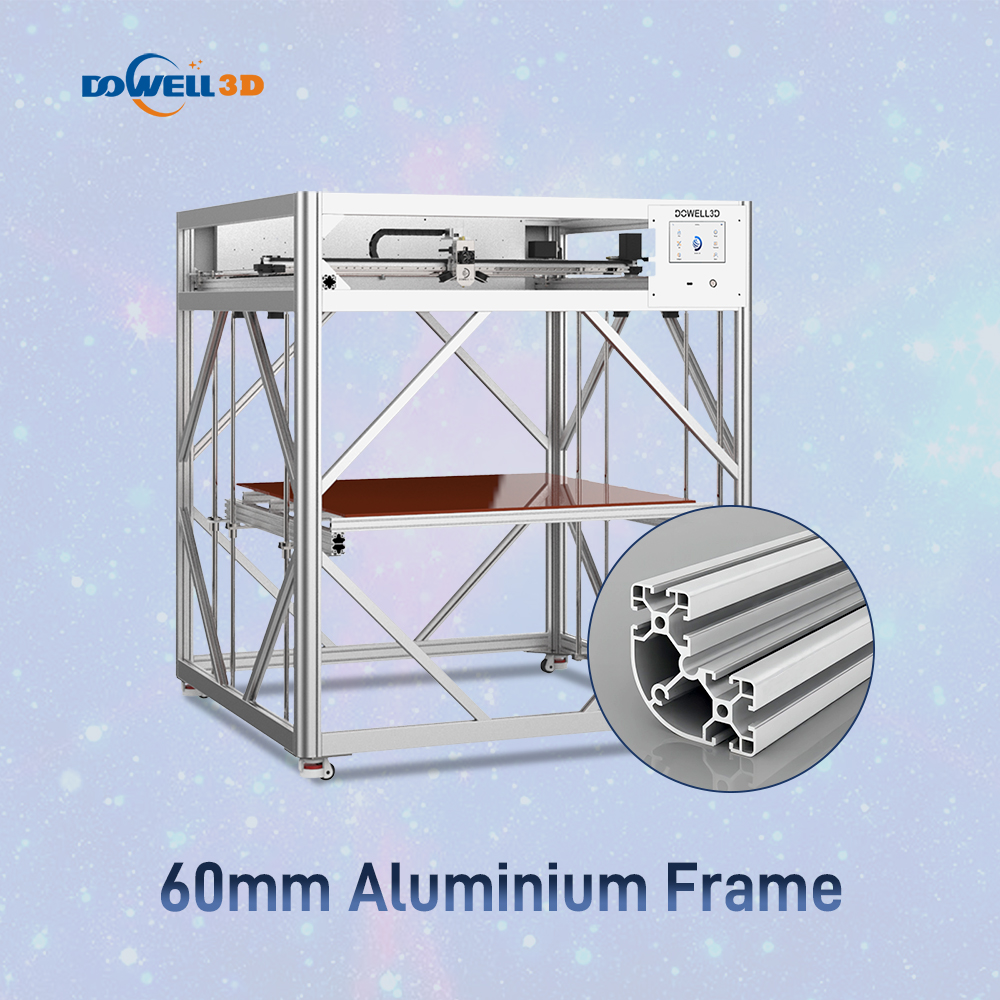

Frame	60mm aluminum frame
Printing size	1000 x 1400 x 1600 mm
Nozzle diameter	0.4/0.6/0.8mm
Nozzle temperature	0-380℃
Bed temperature	0-100℃
Location accuracy	0.02 mm
Layer height accuracy	0.04-0.6 mm
Extrusion flow rate	Max400g/hour
Printing speed	150- 500mm/s
Operation firmware	Independent research and development
Operation interface	7''full color touch screen
File format	STL/OBJ/GCODE
Filament available	1.75mm PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, etc
Connection	SD Card / U Disk / WiFi
Basic functions	*Auto leveling                  *Visible Printing status *Filament sensor            *Visible temperature graph *Wifi Connection            *Installable external camera *Gcode viewer                  *Configuration editable *Z-offset adjustment    *Emergency stop button *History Record               *Speed & extrusion & cooling adjustment
Optional	*60°c Enclosure              *Customize printing size

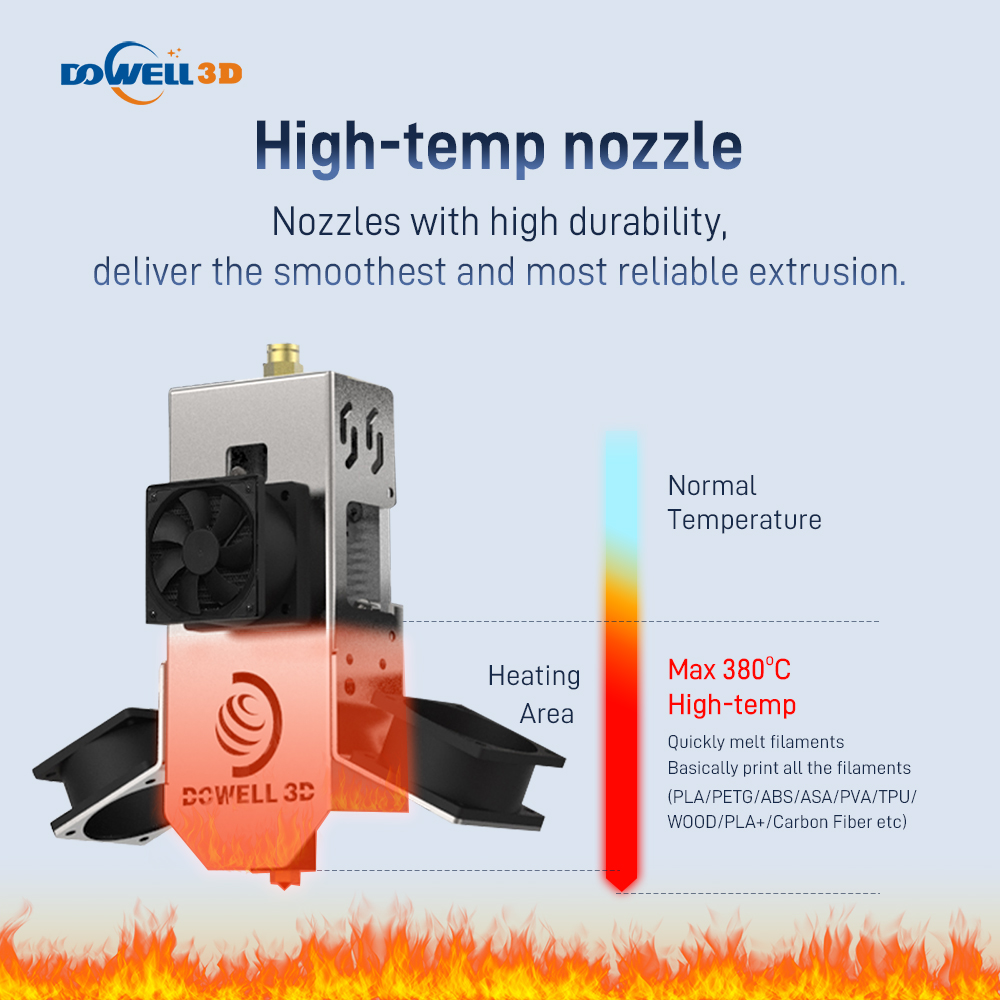

380°c High Temperature Nozzle

The DM Plus series 3D printers feature a high-performance hot end with a nozzle temperature of up

to 380°C. This temperature range enables stable, fast, and smooth printing of engineering and composite

filaments that require high-temperature melting, such as ABS, ASA, PETG, nylon, wood, PVA, and

carbon fiber-reinforced filaments fully unleash the potential of filaments.

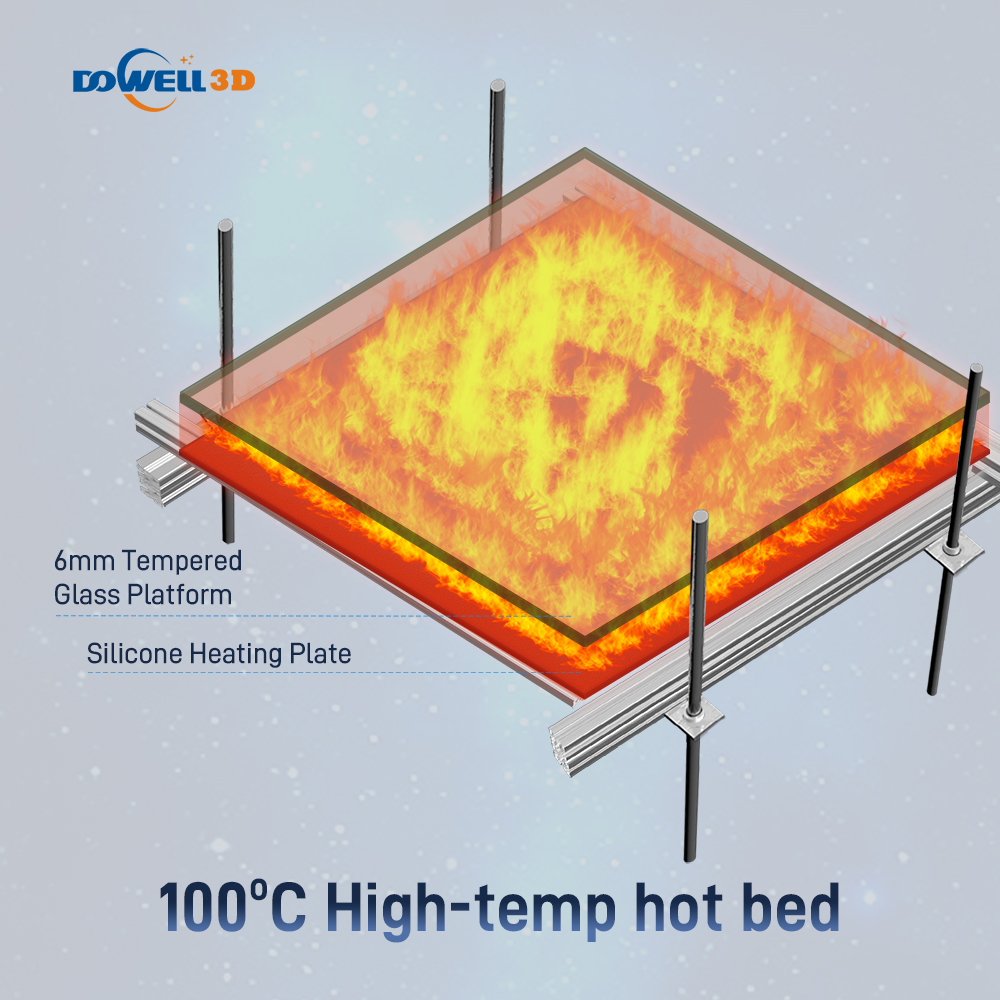

100℃ High Temperature Platform

Dowell 3D printer is equipped with a silicone heating plate + 6mm high-temperature resistant glass

heating bed, with a maximum temperature of up to 100°C, providing continuous and uniform heat to

the bottom of the mold, effectively enhancing adhesion and ensuring that large or complex models are

firmly attached to the platform throughout the printing process to avoid warping.

100-Point Automatic Leveling

The dowell DM Plus printer features a 100-point rectangle detection function that automatically detects

platform flatness and corrects tilt.

This, combined with a self-developed leveling algorithm, ensures the print platform remains perfectly level.

This feature not only saves time but also ensures consistent print quality and reduces the risk of print failures.

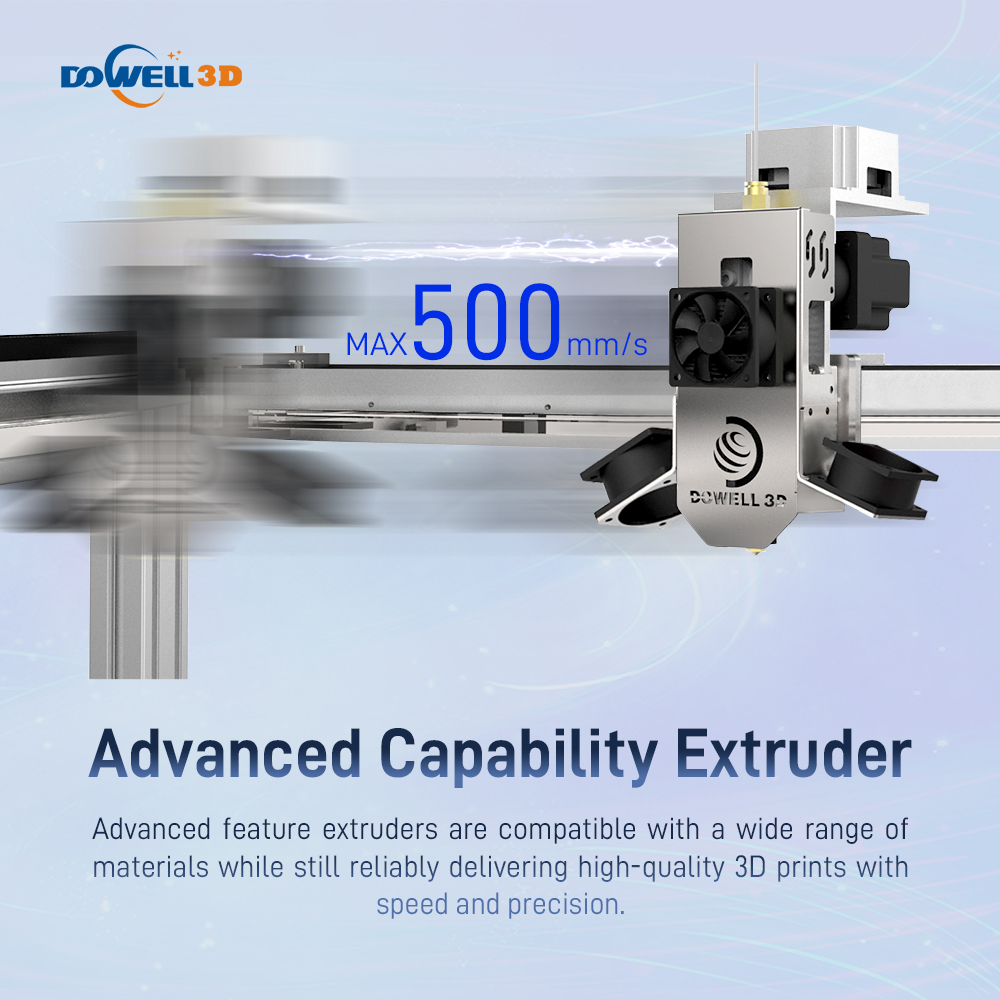

500mm/s  Fast Printing

Experience incredible print speeds of up to 500 mm/s and industrial-grade accuracy of 0.02 mm. The DM

Plus printer is designed for rapid prototyping without compromising on quality, bringing your ideas to life faster.

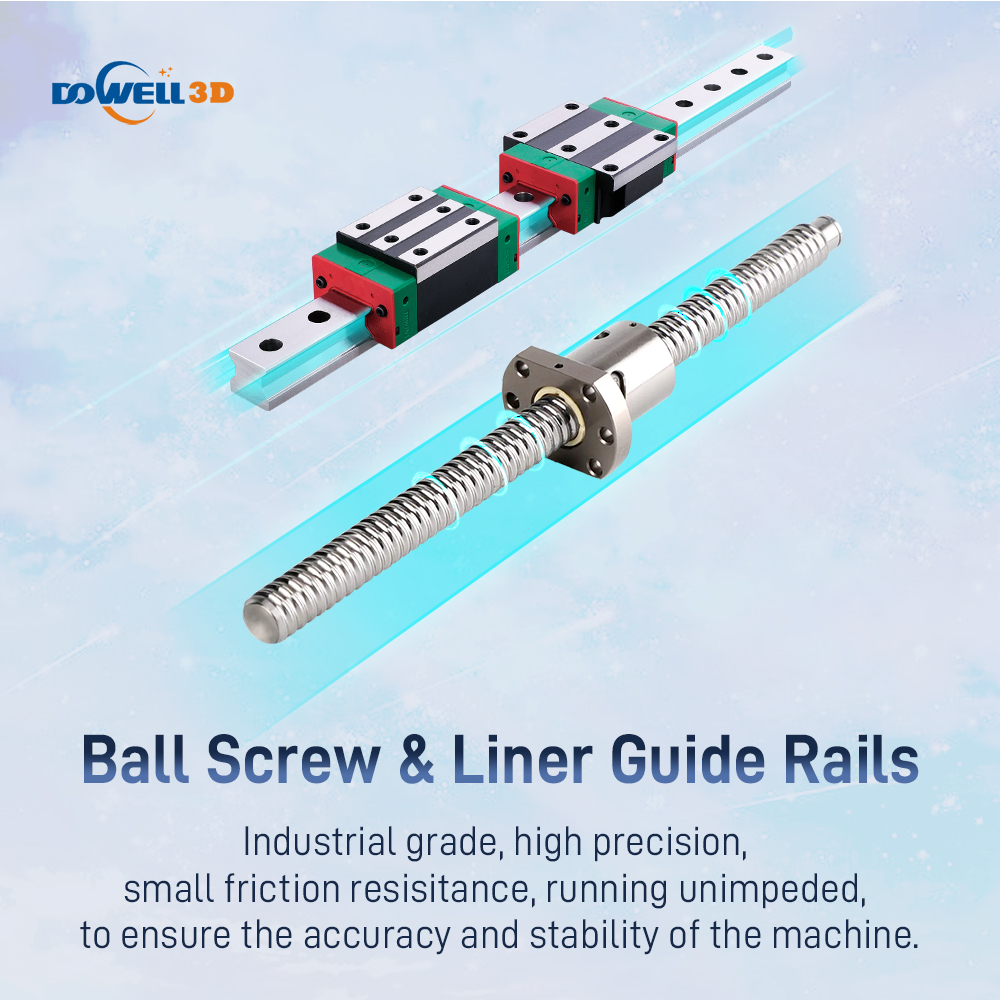

Industrial Grade Ball Screw & Linear Guide Rails

Adopting industrial-grade movement, it has low friction resistance and smooth operation, which improves

the production speed, precision repeatability and stability of printed parts.

Filament Runout Sensor

When the filament runs out or breaks, it will provide an intelligent pause warning to improve the printing

success rate and save time.

Multi-Language 7-Inch Full-Color Touch Screen

The 3D printer's control interface features a 7-inch full-color, multi-language touch screen, which can

significantly improve the user experience and lower the learning threshold. It's especially suitable for

novice users and facilitates global users to operate in different language environments, improving work

efficiency and convenience.

    Noiseless Drive

It has both the advantages of silence and high efficiency, controlling the working at a low voice, while

ensuring the high efficiency of the drive.

WiFi Connection & Remote Control

You can remotely adjust parameters such as printing speed and extrusion flow rate through a computer

or mobile phone at any location, realize wireless transmission of files, and remotely start, stop, and

management of printing tasks.

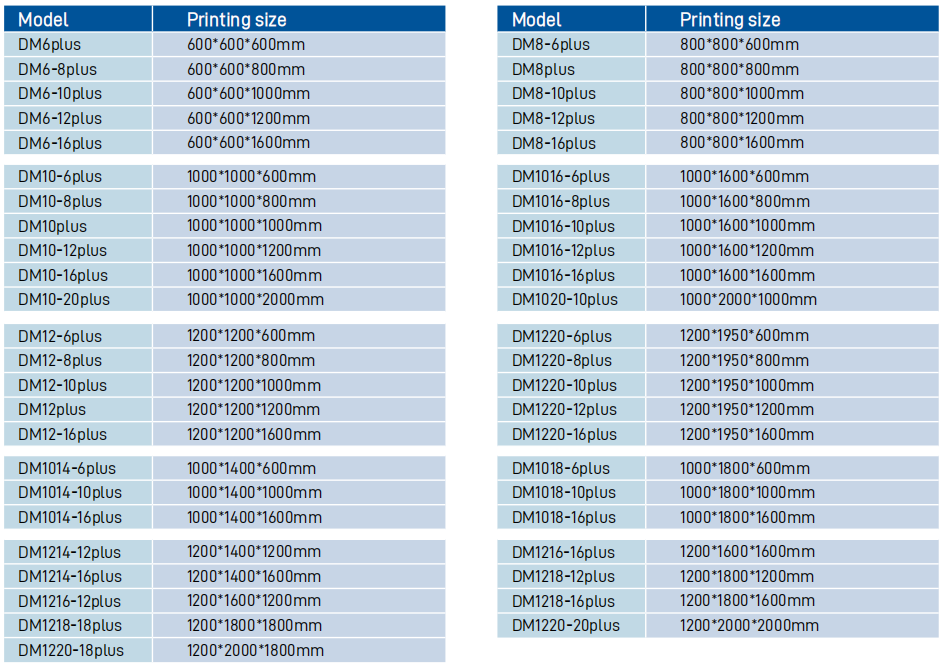

Extensive Printer Size Options

In addition to standard sizes, you can also contact us to customize the print size you prefer.

Official Notice:

Dear Valued Customers,

This is the only official store of Luoyang Dowell 3D Electronic Technology Co., Ltd.

We are the sole manufacturer and exporter of Dowell3D 3D printers and related products.

Please note: We have not authorized any third-party websites or suppliers to distribute

or resell our products.

Products sold under the "Dowell3D" brand on other platforms or websites are counterfeit

and unauthorized. They lack genuine quality, technical support, and after-sales service.

Please exercise caution and discretion when purchasing.

Choose us without hesitation; it will be the best decision you make.

1. Are you a factory or a trade company?

We are a professional 3d printer & 3d printing filaments manufacturer for more than 11 years.

2. What payment method is available for you?

T/T (Bank transfer), PayPal, Western Union, Credit card, WeChat Pay, Ali Pay, T/T

3. What is your term of delivery?

We accept EXW, FOB, CIF, DDP, etc terms.

4. Do you offer a guarantee for the products?

Yes, 1-year warranty.

5. Do you have any certificates for your products?

Yes, our factory has CE, FCC, RoHS, etc certificates.

6. Is it possible to do a customized order?

Yes, OEM and ODM are supported, customize your own brand.

7. Could you send products to my country?

Yes, we do business in every corner of the world. Please contact us to consult the details delivery charge.
