Big 3d Printer 1200mm For Tpu Pla Abs CF 3d printing for industrial use
- Dowell
- China, Luoyang
- 10-16 days
- 1000 set/month
Luoyang Dowell Electronic Technology Co., Ltd is the first batch enterprises who specializing in the developing and manufacturing of 3D printer in China. The brand "Dowell" has now become one of the largest 3D printer big size manufacturers in central China.
The annual sales volume exceeds over 3,000 sets under the annual production capacity of 15,000 sets.
Our products has achieved over 10 patents,certified by CE, FCC Organization, and sold to over 60 countries.
Dowell Large FDM Industrial 3d printing machine DM Series 3d printer fdm 3d printer large scale 3d printer industrial 3d printing 3d printer machine
If you are tired of outsourcing or inefficient production, then our easy-to-use DM Series printers can save you
time and money.
Packed with our latest technology, it is as easy to use as it is powerful, offering the most cost-effective way for
disruptive businesses to adopt 3D printing.
Discover the Dowell 3D printers that will streamline your workflow and deliver the quality results you need.
| Product Description | |
| Model | DM12-16Plus 3D printer |
| Printing size | 1200*1200*1600mm |
| Printing speed | 150-500mm/s |
| Frame | 60mm aluminum section |
| Movement of XY axis | High precision linear rail |
| Movement of bed | 4 X screw rods & 4 X roller rods |
| Printing bed | 6mm tempered glass |
| Bed temperature | 0-100℃ (optional 150℃ ) |
| Nozzle size | 0.4/0.6/0.8mm |
| Nozzle temperature | 0-380℃ |
| Positional accuracy | 0.02mm |
| Layer accuracy | 0.04-0.6mm |
| Slicing software | Dowell3d / Cura / or other similar software |
| Input format | STL/OBJ/Gcode/JPG |
| Filament diameter | 1.75mm PLA, PETG, ABS, ASA, PVA, TPU, WOOD, PLA+, CARBON FIBER, etc |
| Connection | U disk/SD Card |
| Standard functions | *Auto leveling *Filament sensor *Auto power off *Remote control *Wi-fi connection *Visible printing status *Visible temperature graph *Installable external camera *Configuration editable *Z-offset adjustment *Speed&extrusion&cooling adjustment *Gcode viewer *History record *Emergency stop button |
| Customization Options | 1. 60℃ Enclosure 2. Printing size |
Large printing area, accepts custom-made to meet your different printing needs, making your printing work easy and fun.

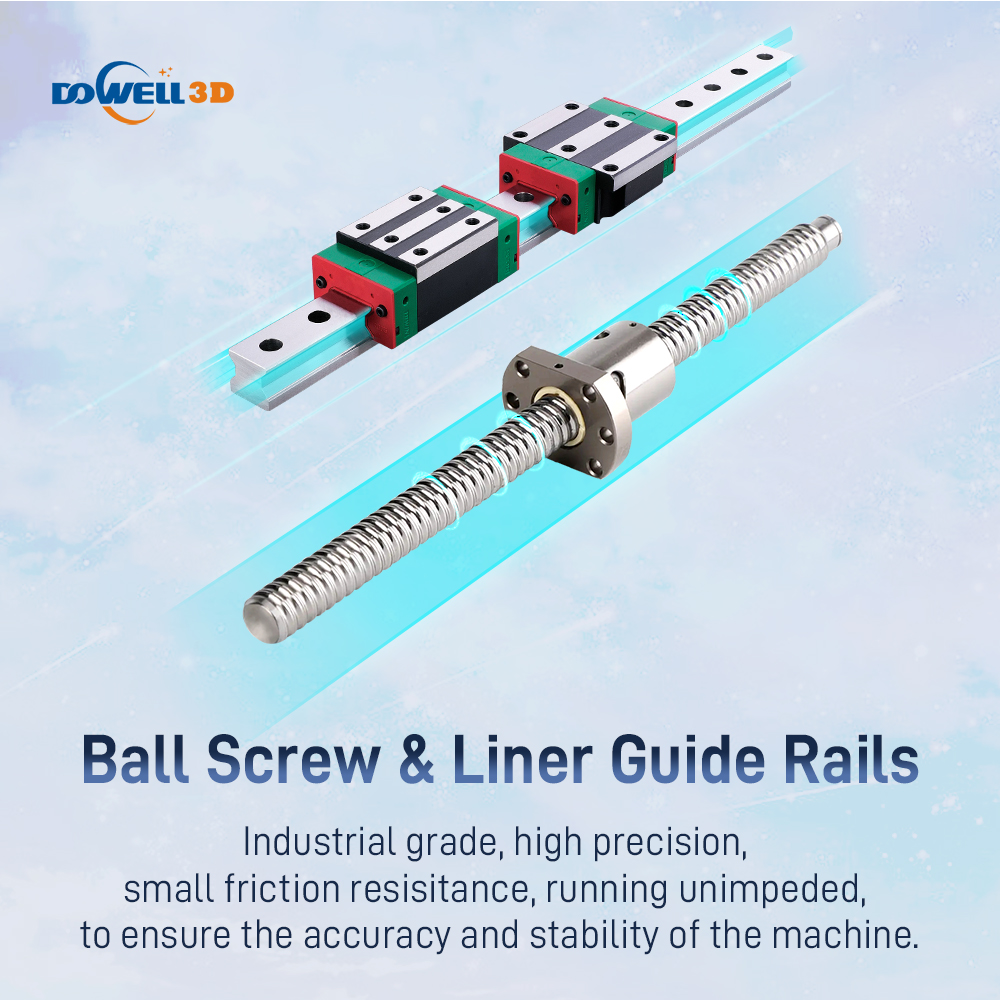

Linear guide rail, ball screw, aluminum alloy body, and tempered platform are used to ensure more stable printing.

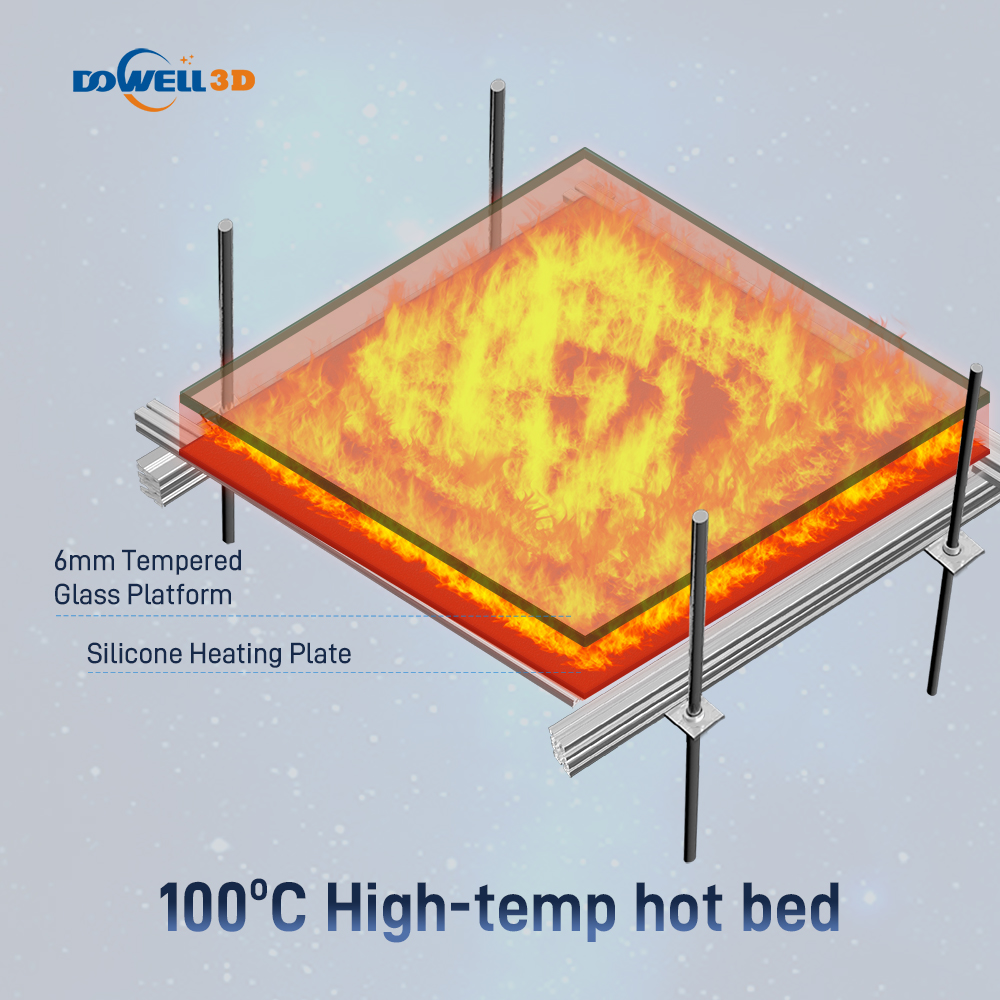

6mm tempered glass platform & High temp hot bed
The whole bed is heated by a silicon rubber heater evenly, with precise temperature control 0-100 degrees.
Super load capacity of more than hundreds of kilograms
100℃ High Temperature Platform
Dowell 3D printer is equipped with a silicone heating plate + 6mm high-temperature resistant glass heating bed,
with a maximum temperature of up to 100°C, providing continuous and uniform heat to the bottom of the mold,
effectively enhancing adhesion and ensuring that large or complex models are firmly attached to the platform throughout
the printing process to avoid warping.
The anti-collision system will automatically rebound when the nozzle hits the platform or the printed model.
Never worry about damaging the platform and print.
380°c High temperature nozzle
Dowell self-research nozzle temperature can reach 380°c, which can melt almost all kinds of filament.
Like PLA, PETG, ABS, ASA, NYLON, Carbon Fiber, PMMA, PP, PC, PVA, PEEK, TPU, etc...
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
Highly sensitive 3D printer with 100-point measuring to achieve true auto leveling.
4 corner detections adjusted to base level, 100 points on the whole bed auto detection platform flatness,
through the independent 4 screws rods adjust to precise leveling.
Smart Filament sensor & Auto resume printing from power off
Automatically detect material breakage, issue a prompt tone, and stop working.
Save the work process after a power failure, and continue to print continuously after powering off.
Casters with high bearing capacity
4 bracket casters, with strong bearing capacity and convenient movement.
FDM 3D PRINTER LARGE SIZE 3D PRINTING MACHINE INDUSTRIAL 1000MM 3D PRINTER an

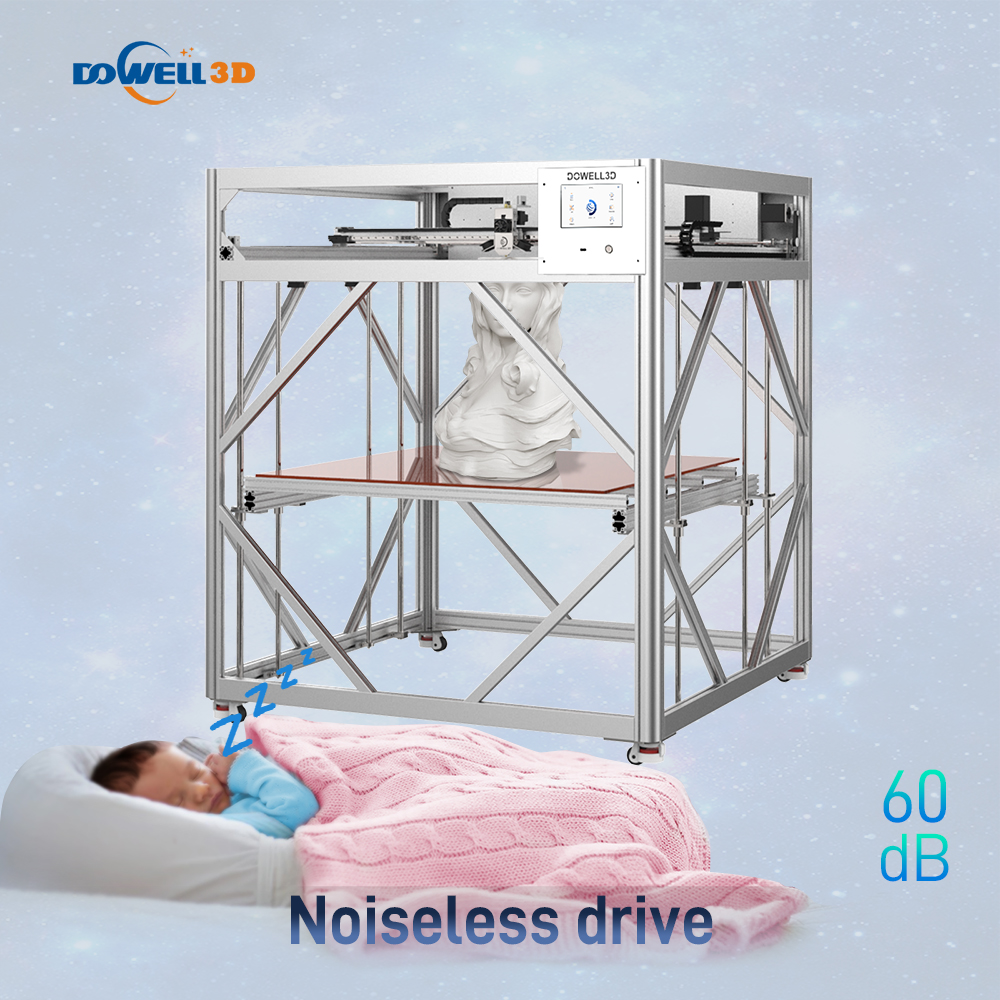

Strong motor & Noiseless Drive
It has both the advantages of silence and high efficiency.
Controlling the working noise at about 60dB while ensuring the high efficiency of the drive.
Tank chain & Super flexible wire
The tank chain is equipped with special super-flexible wires.
Rotate freely, stable and accurate, low noise, clean and beautiful lines, wear-resistant, can withstand thousands of times of bending.
7-Inch Large Screen, Simple operation
The newly upgraded 7-inch full color touch capacitive screen has abundant functions at a glance, is responsive,
and is not easy to touch by mistake.
A variety of printing sizes are available; we also provide customization options.
Contact us to create your own 3d printer.
fdm 3d printer large scale 3d printer industrial 3d printer 3d printer machine
We also provide customization options
A: 60℃ Enclosure
B: Printing size
Some feedback from customers, we also have many customer cases want to share with you.
Contact us to learn more details.
WHY YOU CAN TRUST DOWELL 3D
CE & FCC CERTIFICATE
11 YEARS OF RICH EXPERIENCE IN 3D PRINTING
PROFESSIONAL R&D TEAM
DIRECTLY FACTORY ( COST SAVING)
10-16 DAYS FAST DELIVERY
LIFE-LONG TIME AFTER SALE SERVICE
Luoyang Dowell Electronic Technology Co., Ltd. was established in Luoyang, China, in 2014. As one of the world's
largest 3D printer manufacturers, we specialize in providing efficient, affordable, high-quality 3D printers and eco-friendly
printing filaments for individuals, families, schools, and businesses.
We provide a 1-year warranty and lifelong professional after-sales service.
FAQ
1. Are you a trading company or a manufacturer?
We are DOWELL, a 3D printer manufacturer with over 11 years of R&D experience.
2. What certifications do you have?
CE, FCC, ROHS, etc.
3. What payment method is available for you?
T/T (Bank transfer), PayPal, Western Union, Credit card, WeChat Pay, Ali Pay, T/T
4. Could you send products to my country?
Yes, we do business in every corner of the world. Please contact us to consult the details delivery charge.
5. How do you guarantee the quality of the printer?
We conduct 100% testing before shipment. We provide test photos and videos before shipment.
We guarantee that our 3D printers will be free of any quality issues before shipment. Once confirmed, we will arrange shipment.
6. How about the after-service?
Our printers have a 1-year warranty.
And if you have any printing problems, our after-service team will respond quickly to solve your problem via video or online service.
